Men's jacket, pattern №1288
This insulated, loose-fitting jacket features a hood, zip closure, and pockets. The sleeves are raglan. The front has two types of pockets: slanted welt pockets with a flap on the upper front and horizontal welt pockets with a flap and closure on the lower front.
Advanced level
Instructions with photo
Plotter 900 + А4/Letter
Sizes:
-
size 42, height 170-176
-
size 42, height 176-182
-
size 44, height 170-176
-
size 44, height 176-182
-
size 44, height 182-188
-
size 44, height 188-194
-
size 46, height 170-176
-
size 46, height 176-182
-
size 46, height 182-188
-
size 46, height 188-194
-
size 48, height 170-176
-
size 48, height 176-182
-
size 48, height 182-188
-
size 48, height 188-194
-
size 50, height 170-176
-
size 50, height 176-182
-
size 50, height 182-188
-
size 50, height 188-194
-
size 52, height 170-176
-
size 52, height 176-182
-
size 52, height 182-188
-
size 52, height 188-194
-
size 54, height 170-176
-
size 54, height 176-182
-
size 54, height 182-188
-
size 54, height 188-194
-
size 56, height 170-176
-
size 56, height 176-182
-
size 56, height 182-188
-
size 56, height 188-194
-
size 58, height 170-176
-
size 58, height 176-182
-
size 58, height 182-188
-
size 58, height 188-194
-
size 60, height 170-176
-
size 60, height 176-182
-
size 60, height 182-188
-
size 60, height 188-194
-
size 62, height 170-176
-
size 62, height 176-182
-
size 62, height 182-188
-
size 62, height 188-194
-
size 42, height 182-188
-
size 42, height 188-194
-
-
Size:
- 42
- 44
- 46
- 48
- 50
- 52
- 54
- 56
- 58
- 60
- 62
Height:
- 170-176
- 176-182
- 182-188
- 188-194
$8.80
$11
After payment, links for downloads of patterns are sent to your e-mail. For registered users download links are also available in personal account in the section "My Orders".
Info
Comments
Questions
-

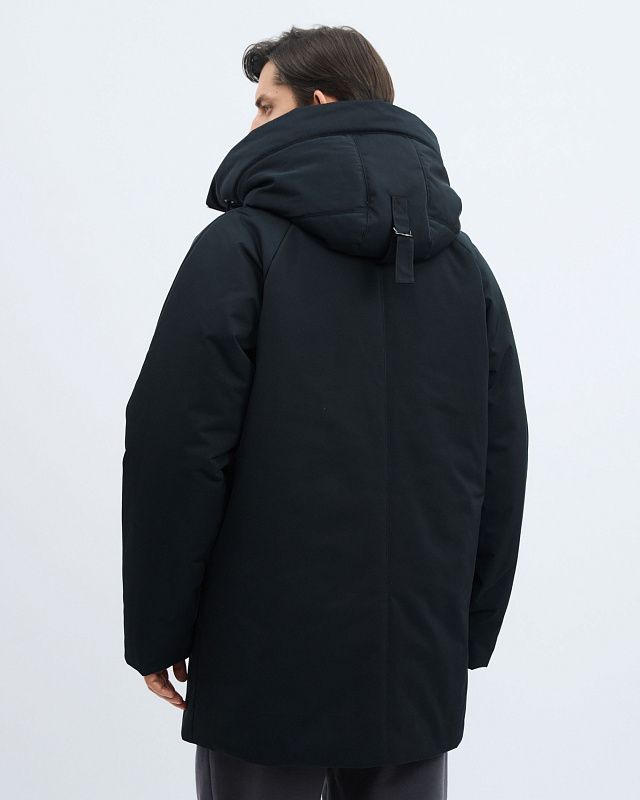

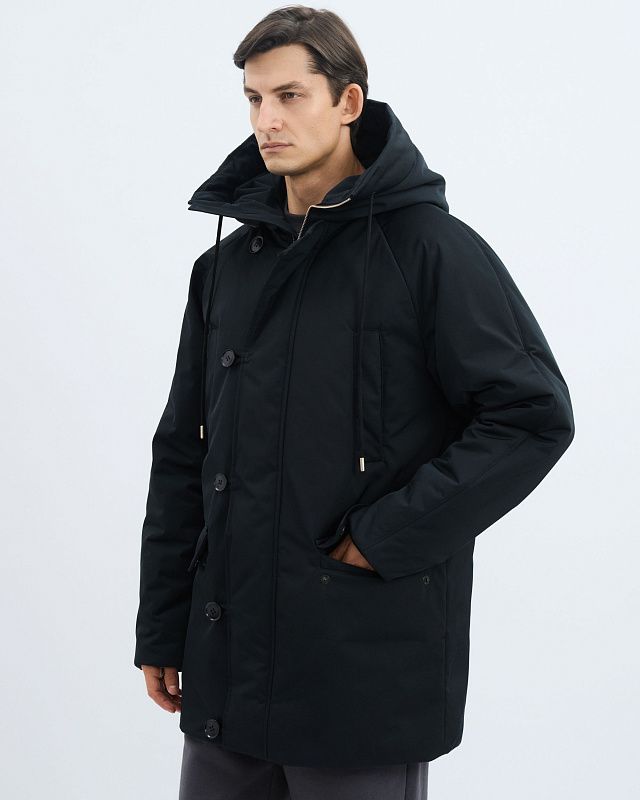

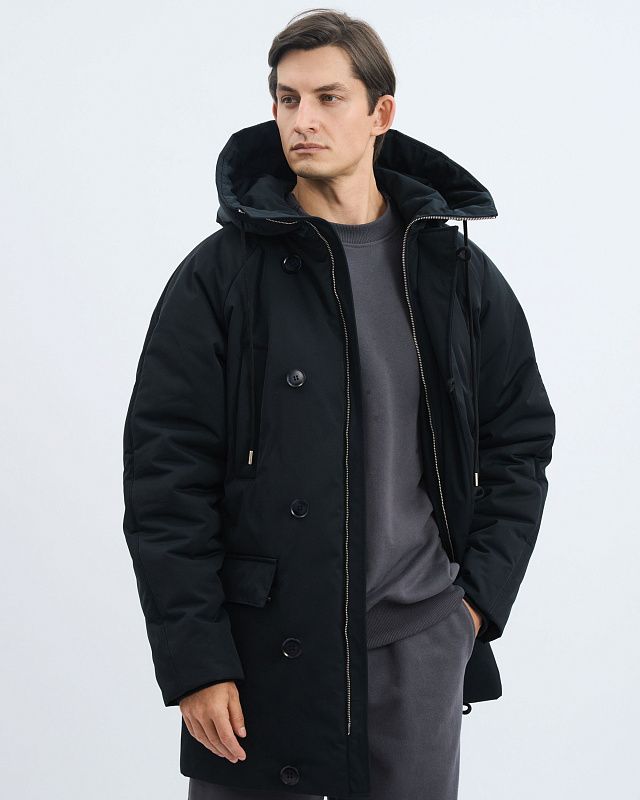

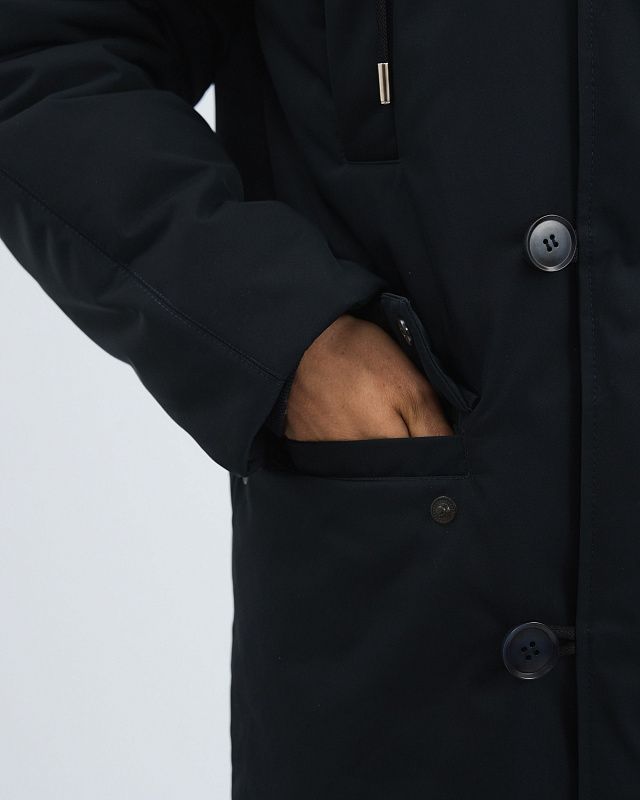

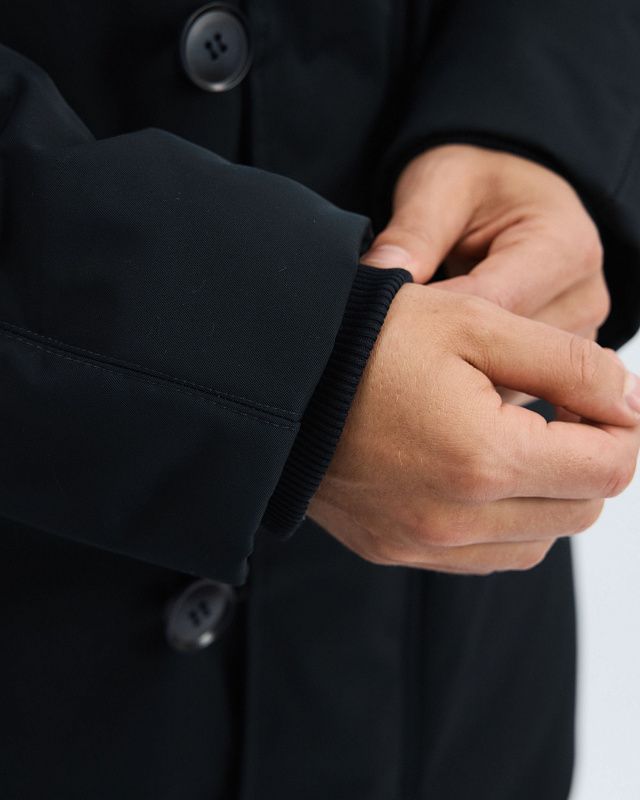

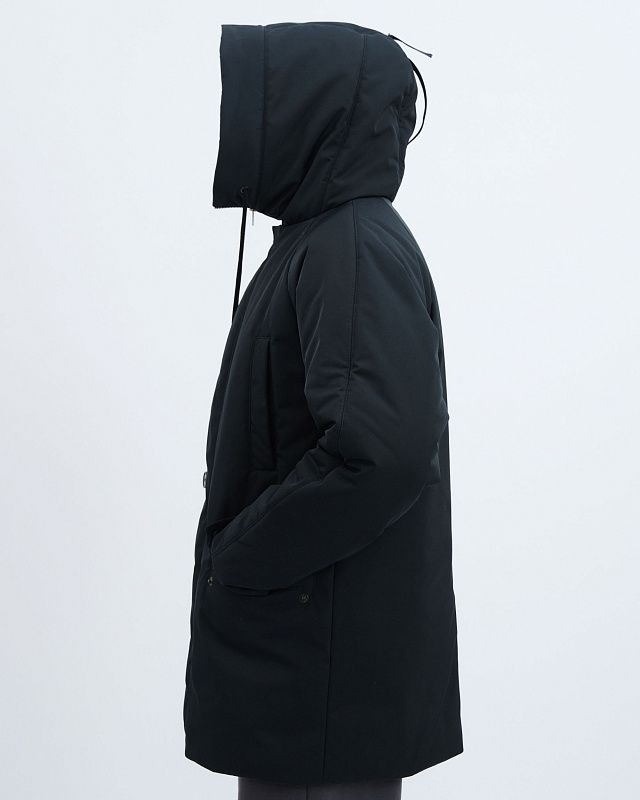

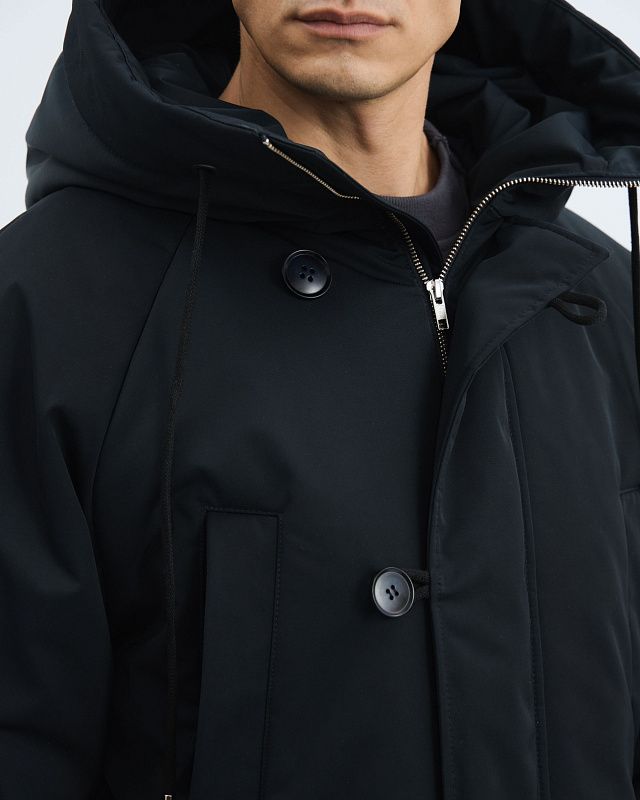

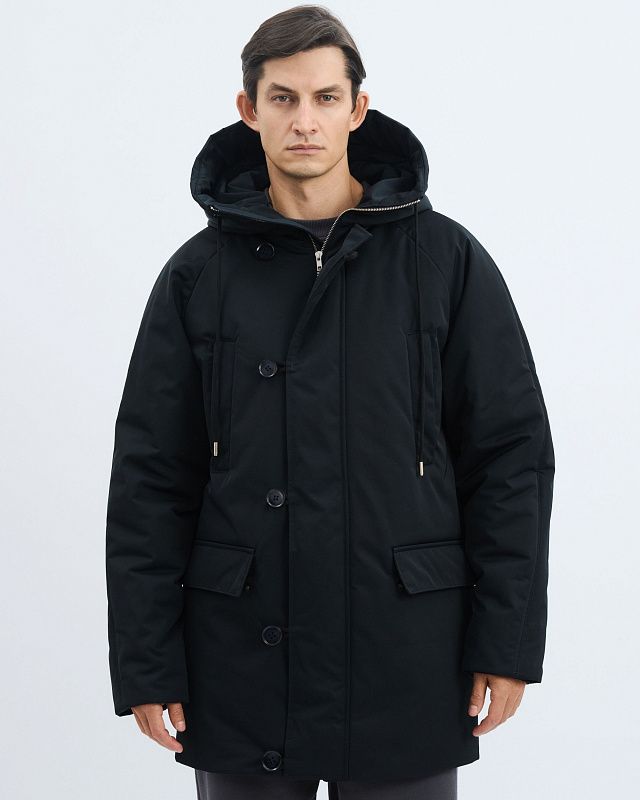

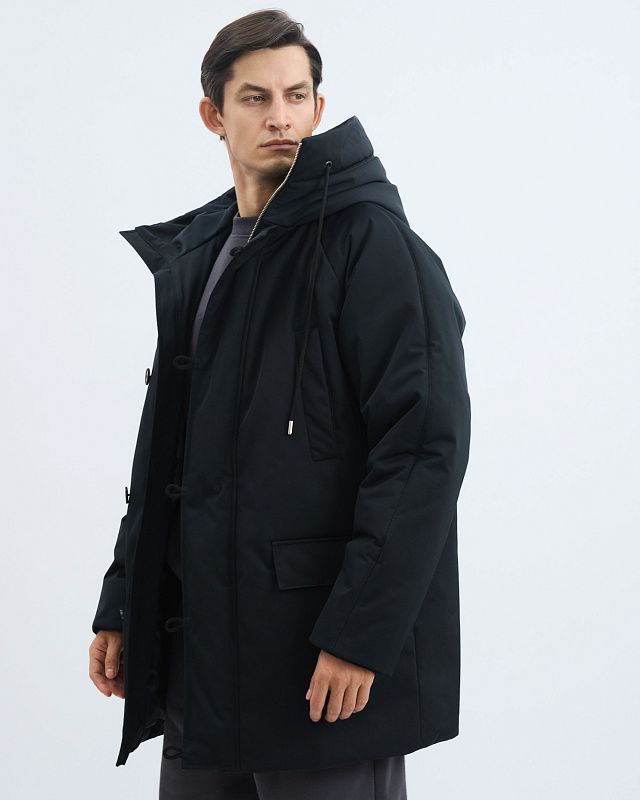

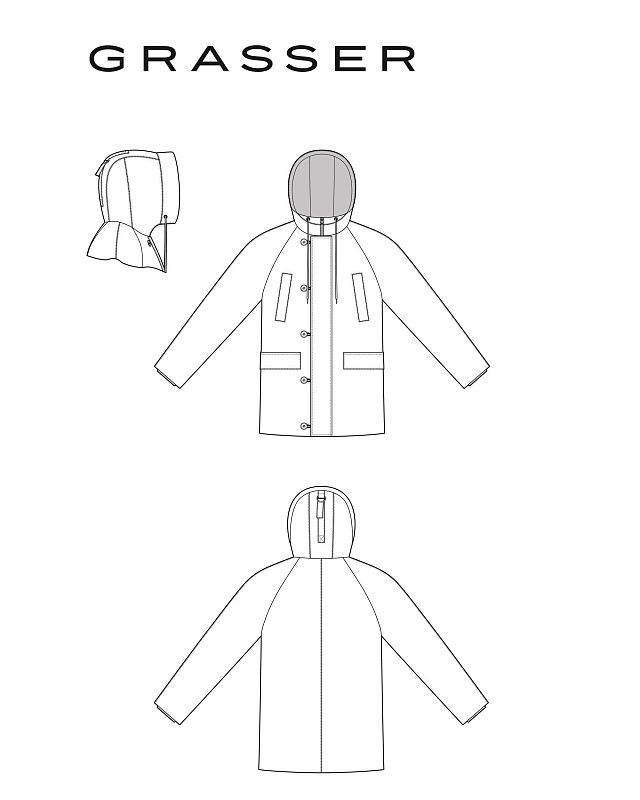

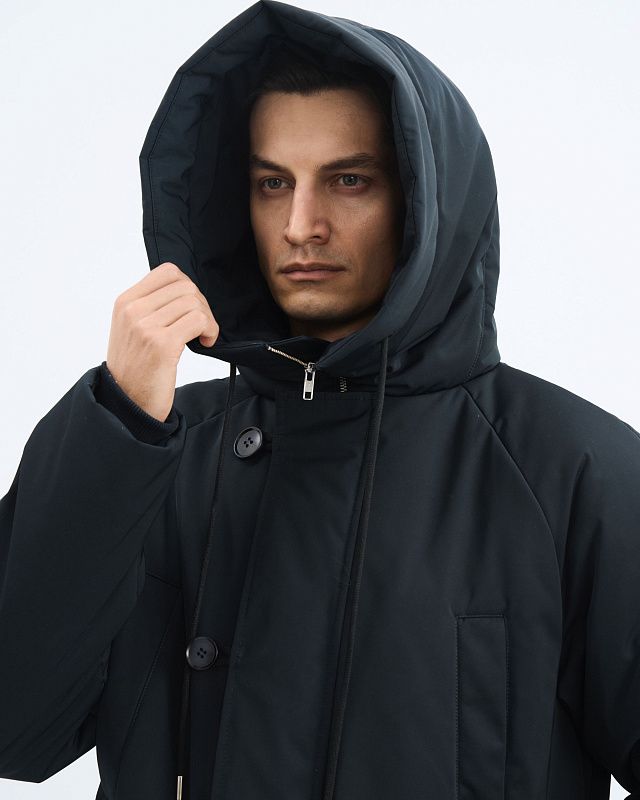

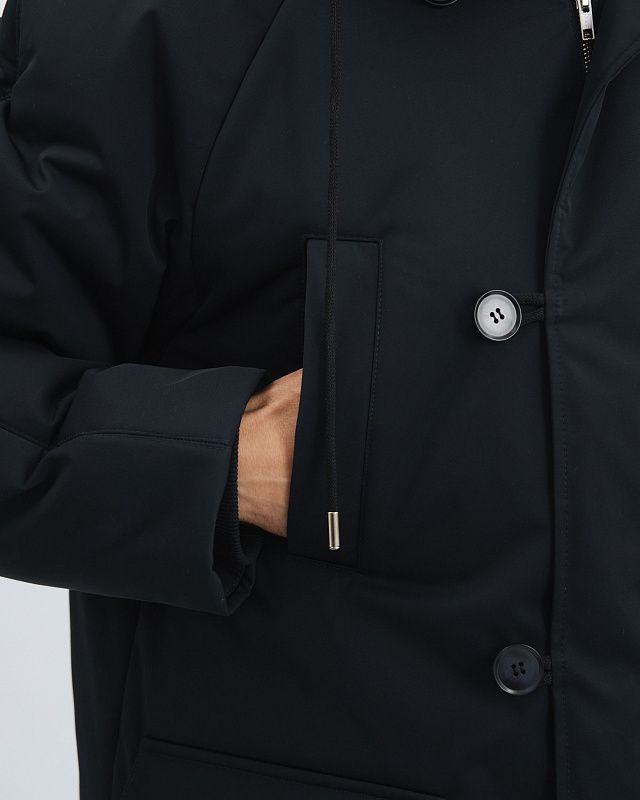

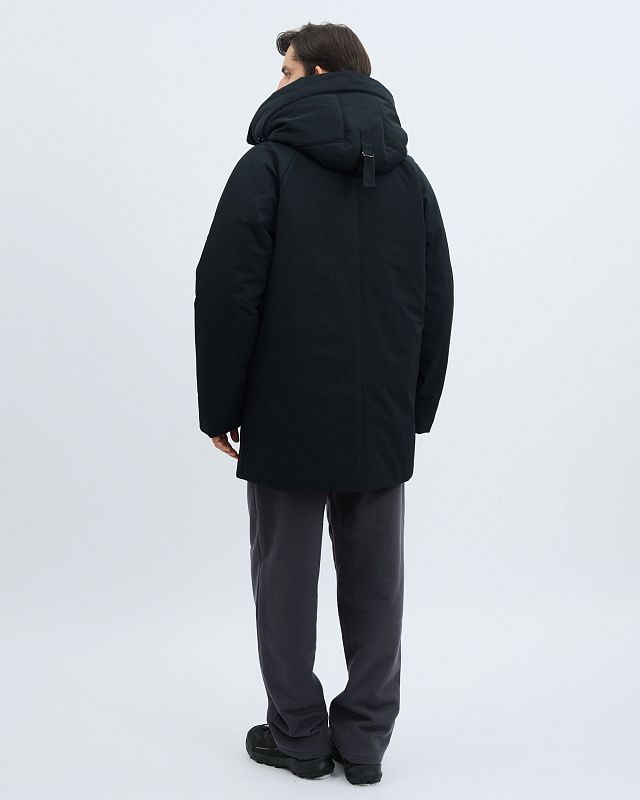

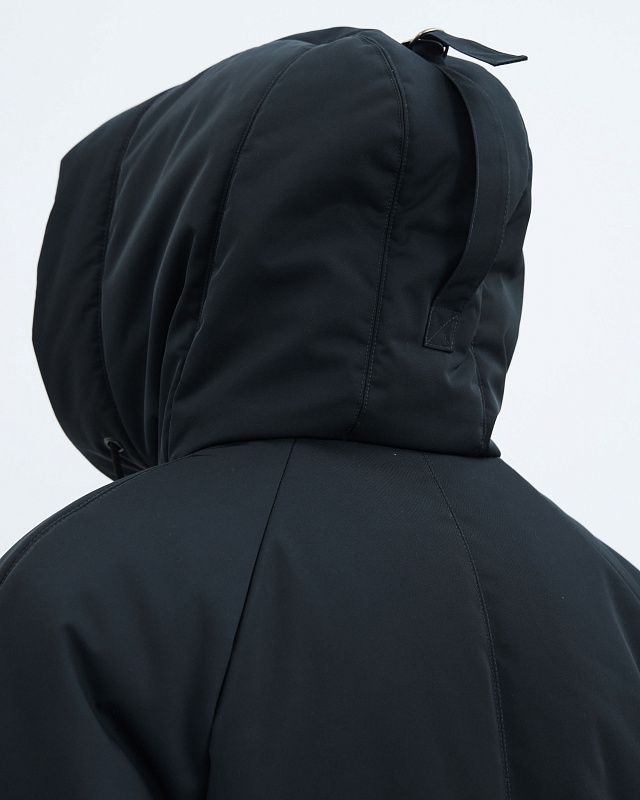

A loose-fitting jacket with a straight silhouette, mid-thigh length, insulated and lined, with a hood. The central side zipper closure is finished with internal and external underlap plackets. The external placket is adjustable, with a closure with 5 hinged loops and 5 buttons. In the upside part of the front, there are slanted welt pockets, with ends stitched-in and a 1-snap closure on the inner side. There are horizontal welt pockets with ends stitched in and a flap in the downside part of the front. There is a 2-snaps closure on the inner side of the flap. The back is with a center seam. The sleeve is of raglan cutting, with the length below the wrist, with upside and downside seams and an inner knitted cuff. The round neck is finished with a hood. A hood is of moderate volume with a one-piece collar stand, a central part and a wide facing along the front edge. The side part of the hood is with a vertical princess seam. The central part of the hood has a strap that adjusts the volume, with a half-ring closure. A casing is designed on the hood facing with adjustable fit using a cord. The ends of the cord are brought to the front through the grommets.

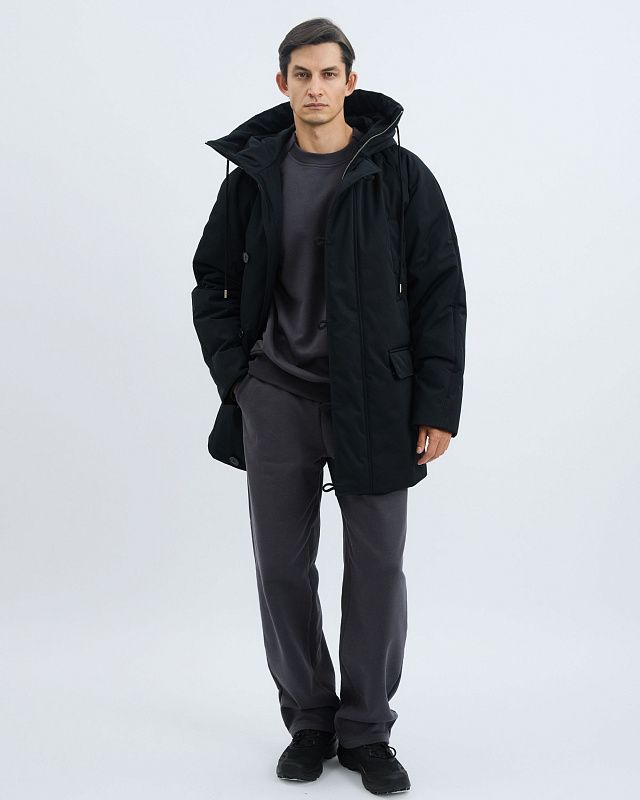

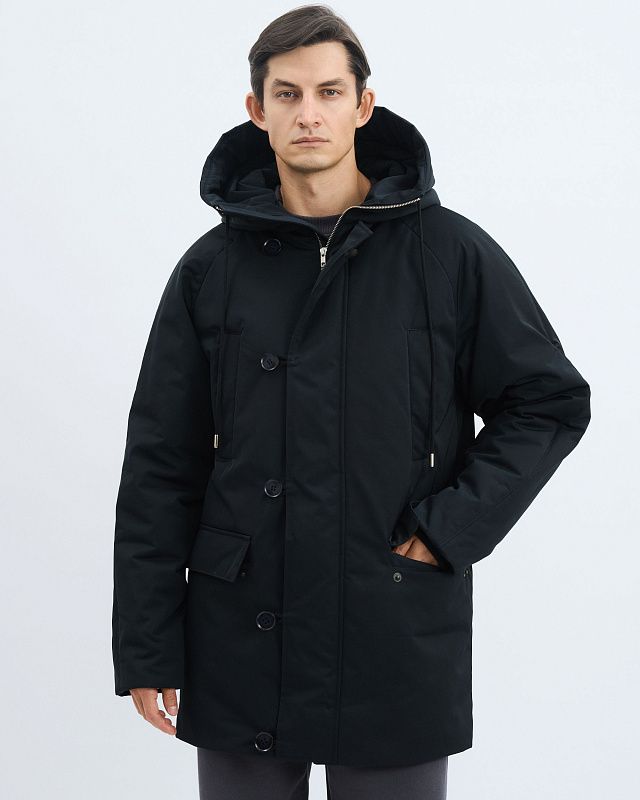

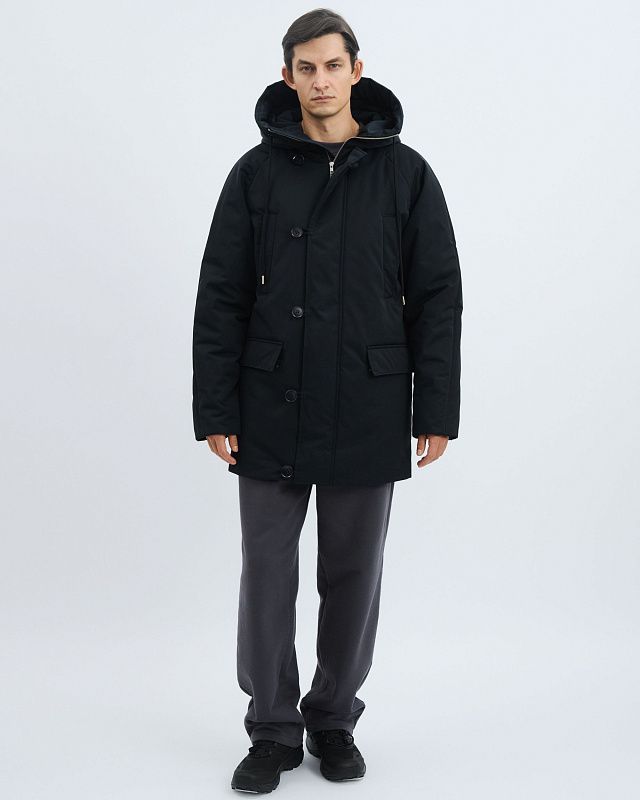

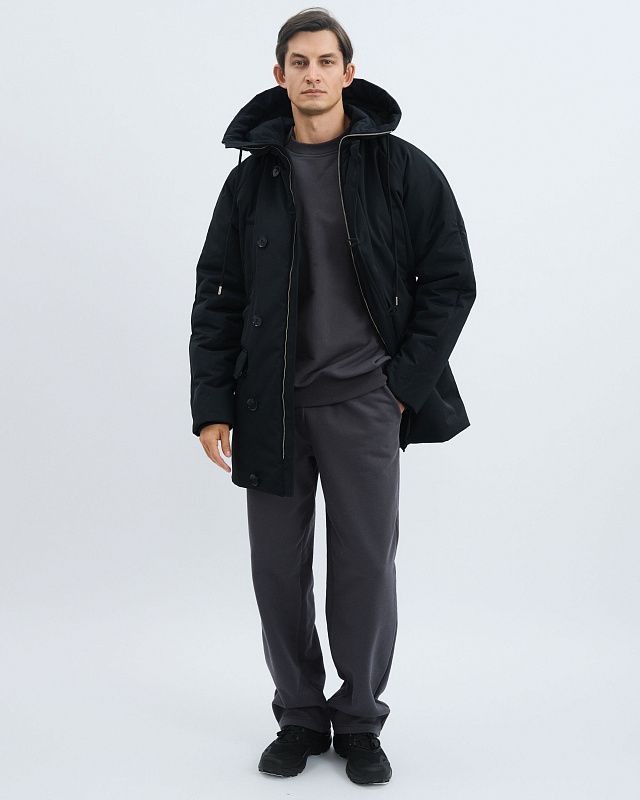

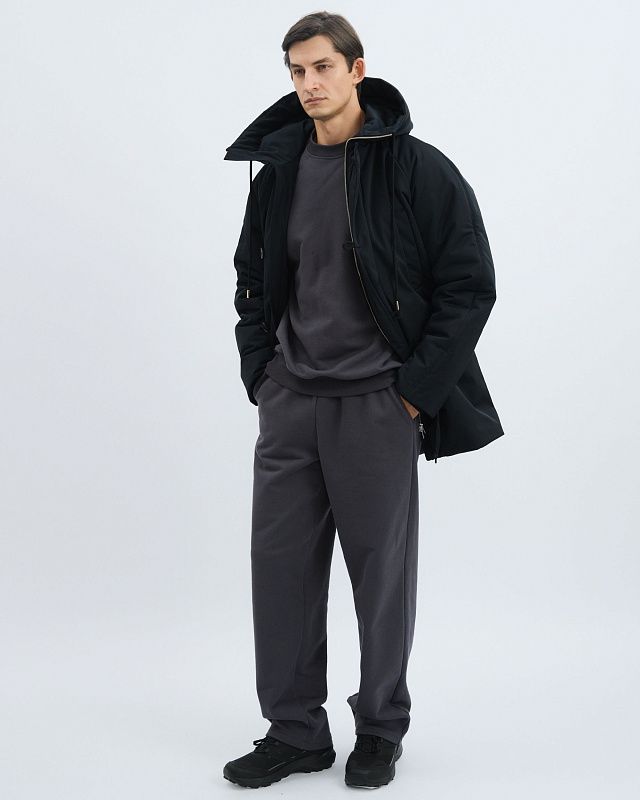

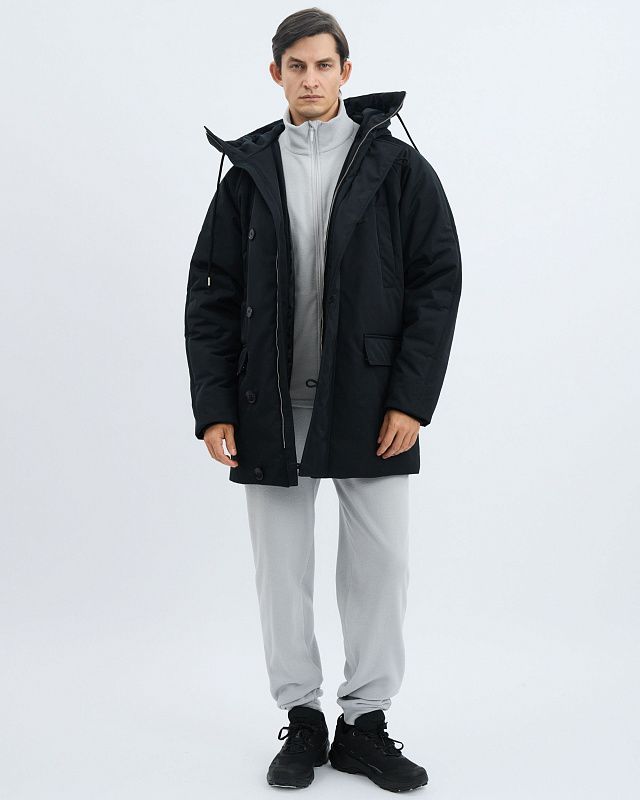

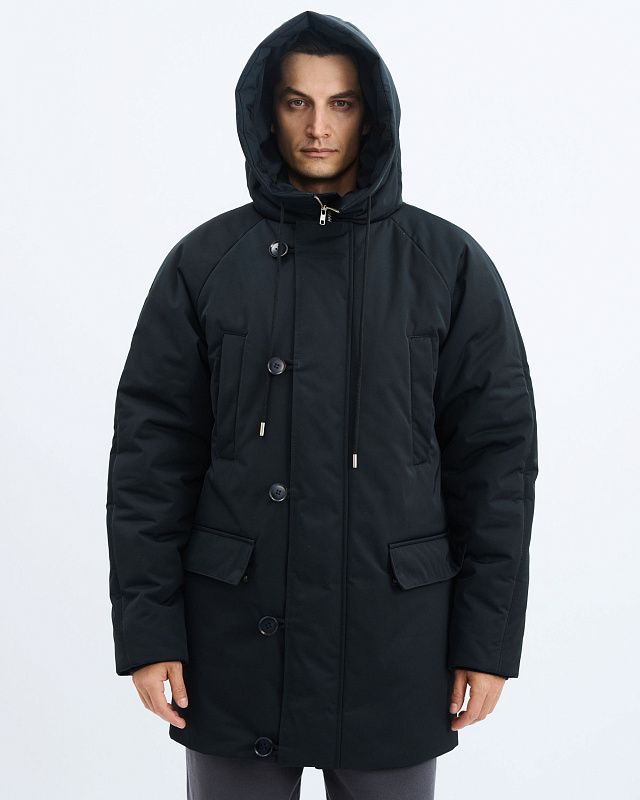

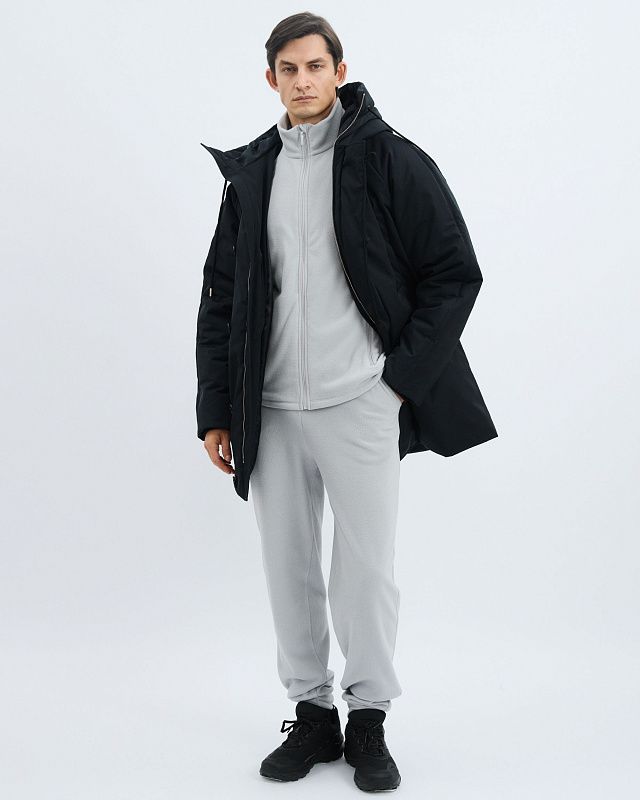

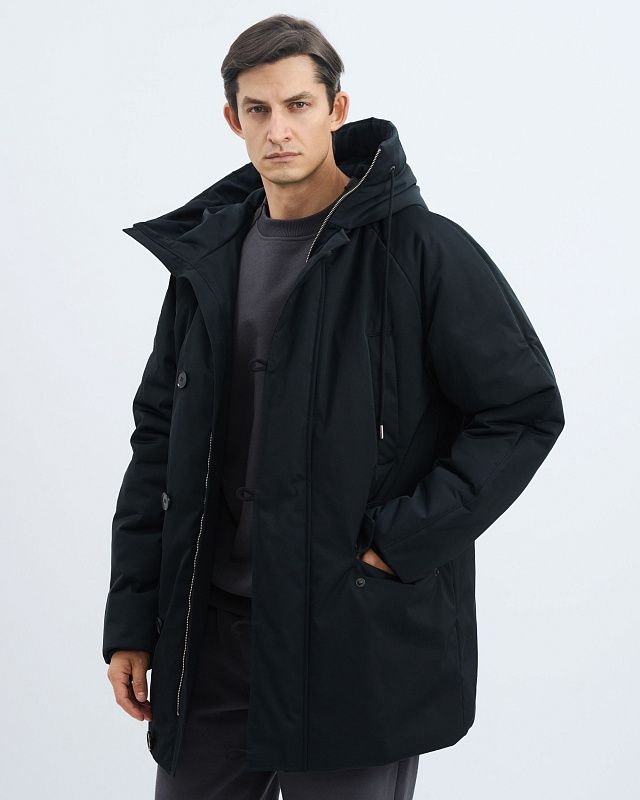

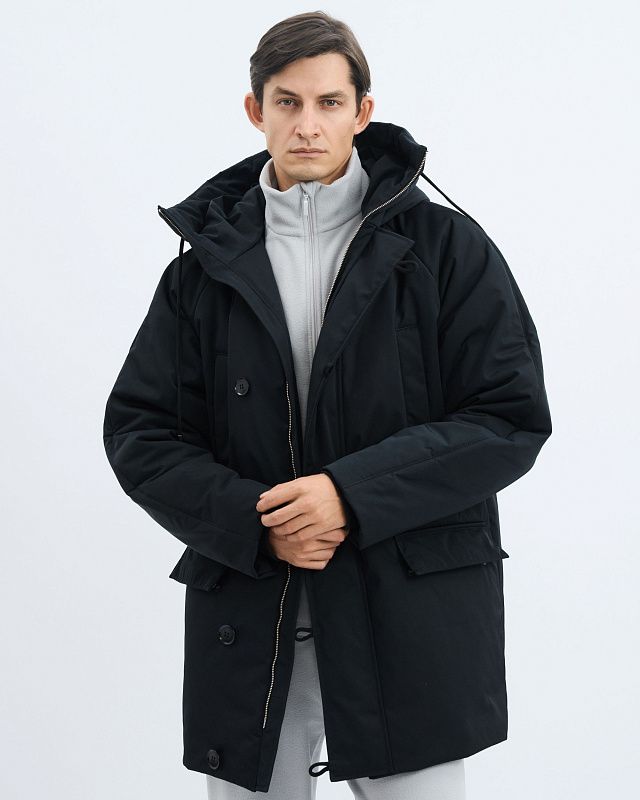

Model is wearing a size 52, height 182-188. Model parameters: Bust-line: 105 cm, Waist-line: 80 cm, Hips: 102 cm, Height: 188 cm. -
CONSTRUCTIVE EASE (EC)*:
Bust-line: 32,8 cm.
Shoulders: 29,5 cm.
Hips-line:
Size 42 44 46 48 50 52 54 56 58 60 62 25,9-23,5 26,9-24,5 27,9-25,5 28,9-26,5 29,9-27,5 30,9-28,5 31,9-29,5 32,9-30,5 33,9-31,5 34,9-32,5 35,9-33,5
Constructive ease consists of ease of package and ease of freedom.
Constructive ease is for a garment’s outer volume, ease of freedom is for a garment’s inner volume.
EF = EC - EP
We used one layer of insulation material for our garment, density is 250 g/m2.
EASE OF PACKAGE WAS 5.0 CM (EP)* (may differ according to a material type).
EASE OF FREEDOM (EF):
Bust-line: 27,8 cm.
Shoulders: 24,5 cm,
Hips-line:
Size 42 44 46 48 50 52 54 56 58 60 62 20,9-18,5 21,9-19,5 22,9-20,5 23,9-21,5 24,9-22,5 25,9-23,5 26,9-24,5 27,9-25,5 28,9-26,5 29,9-27,5 30,9-28,5
-
Size 42 44 46 48 50 52 54 56 58 60 62 Finished back length along the center back seam 83,2-89,2 83,3-89,3 83,4-89,4 83,5-89,5 83,6-89,6 83,7-89,7 83,8-89,8 83,9-89,9 84,0-90,0 84,1-90,1 84,2-90,2 Finished sleeve length from the neckline 77,8-84,2 78,3-84,6 78,8-85,2 79,3-85,6 79,8-86,2 80,3-86,6 80,8-87,2 81,3-87,6 81,8-88,2 82,3-88,6 82,8-89,2
-
Main fabric. For this model, we recommend using raincoat and jacket fabrics; raincoat fabrics with a membrane; raincoat and jacket fabrics with impregnation.
Lining fabric. We recommend using a lining made of synthetic fibers as a lining for membrane fabrics, and a lining made of synthetic, blended and natural fibers for raincoat and jacket fabrics. As a lining for the pockets of the front, we recommend using fleece with a density of 190 g/m2.
Fabric for cuffs. For the details of the inner cuff, we recommend using knitwear with a stretchability coefficient of 0.80–0.85, medium density or dense, for example, knit ribbed fabrics, garters and ready-made cuffs and waistbands.
Insulation. To insulate the garment, we recommend using a new generation of synthetic insulation materials with a protective layer on both sides - for example, ISOSOFT 34 250 g/m2.
-
The amount of fabric in meters.
Size 42 44 46 48 50 52 54 56 58 60 62 Main fabric, wide 140 cm 2,80-2,95 2,85-3,00 2,90-3,00 2,95-3,05 3,00-3,10 3,05-3,20 3,10-3,25 3,15-3,30 3,25-3,30 3,30-3,45 3,35-3,45 Lining fabric, wide 140 cm 1,60-1,70 1,60-1,75 1,65-1,75 1,70-1,80 1,70-1,80 1,75-1,85 1,75-1,90 1,85-2,00 1,95-2,05 2,00-2,15 2,05-2,20 Fleece, wide 150 cm 0,50
Rib knit fabric (kashkorse or ribana), wide 100 cm 0,25
Insulation material (250 g/m2; width 140 cm) 2,50-2,60 2,55-2,75 2,60-2,75 2,65-2,80 2,65-2,80 2,70-2,90 2,80-2,95 2,90-3,00 2,90-3,05 2,90-3,10 3,00-3,15 Non-fusible facing straightener of 90 g/m2 and with the width of 90 cm 1,00
1,05 Round cord with diameter of 5 mm 2,05
Attention! We give an exact fabric consumption for a tight layout scheme of the details, without the extra seam allowances for the fitting and rough cutting. All pattern details should be arranged on an opened fabric sheet strictly on grain in one direction, each pattern piece must be cut out only once.
Accessories:
-
- Multipurpose sewing machine;
- An iron with or without steam;
- Regular presser foot;
- Hinged cording foot;
- Wooden iron;
- Ironing desk or console table;
- Hand needle for basting;
- Machine needles MICROTEX (extra sharp) #80-90 for the main fabric;
- Machine needles #70-80 for the lining;
- Paper scissors;
- Scissors for textile cutting;
- Snaps pressing machine to install accessories grommets and press studs, depending on the diameter.
-
The pattern in your order will be in two print options:
1. For printing on A4/Letter. You need to print the pattern on a regular printer on A4/Letter sheets, then glue the sheets, cut the pattern and you can sew! A test square for checking the A4/Letter print scale is located on the first sheet of the pattern file.
2. For printing on a large format plotter. A test square for checking the plotter scale is located on the pattern sheet.
