Trench coat, pattern №155
Difficulty: 5/5
Instructions with photo
Plotter 600 + А4/Letter
Sizes:
-
size 38, height 158-164
-
size 38, height 164-170
-
size 40, height 158-164
-
size 40, height 164-170
-
size 40, height 170-176
-
size 40, height 176-182
-
size 42, height 158-164
-
size 42, height 164-170
-
size 42, height 170-176
-
size 42, height 176-182
-
size 44, height 158-164
-
size 44, height 164-170
-
size 44, height 170-176
-
size 44, height 176-182
-
size 46, height 158-164
-
size 46, height 164-170
-
size 46, height 170-176
-
size 46, height 176-182
-
size 48, height 158-164
-
size 48, height 164-170
-
size 48, height 170-176
-
size 48, height 176-182
-
size 50, height 158-164
-
size 50, height 164-170
-
size 50, height 170-176
-
size 50, height 176-182
-
size 52, height 158-164
-
size 52, height 164-170
-
size 52, height 170-176
-
size 52, height 176-182
-
size 54, height 158-164
-
size 54, height 164-170
-
size 54, height 170-176
-
size 54, height 176-182
-
-
Size:
- 38
- 40
- 42
- 44
- 46
- 48
- 50
- 52
- 54
Height:
- 158-164
- 164-170
- 170-176
- 176-182
$7.70
$11
After payment, links for downloads of patterns are sent to your e-mail. For registered users download links are also available in personal account in the section "My Orders".
Info
Comments
Questions
-

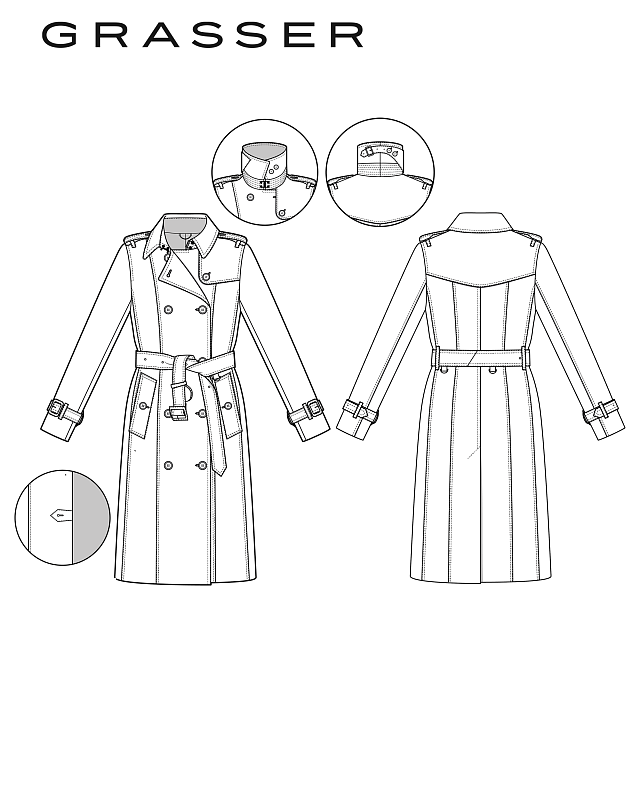

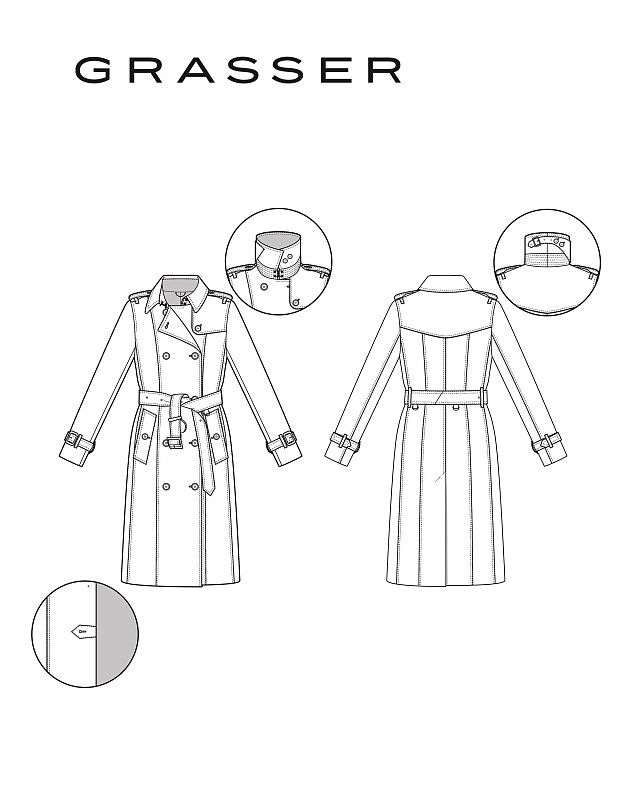

Double‑breasted trench coat of fitted silhouette, close fit, lined. The front has princess seams from the shoulder and armhole. The model has a side panel, there is no side seam. The back has princess seams from the shoulder and armhole as well. The shoulders feature detachable shaped shoulder straps. The front has welt pockets with topstitched ends, fastened with a button. The left front has a storm flap fastened with a button. The back has a storm flap as well. The center back seam has a vent. Napoleon collar with a separate stand; the stand fastens with a hook. The collar also has a throat latch that fastens with buttons and a buckle. The front closure is double‑breasted, with two rows of buttonholes and buttons. The sleeves are set‑in, two‑piece. The sleeves are finished with straps and buckles. The belt is detachable, with a buckle, and features straps with D‑rings; it also has a moveable belt loop to secure the belt end.
-
Bust-line: 10,2 сm
Waist-line: 14,2 сm
Hips-line: 9,2 сm
Shoulders: 7,0 сm
-
Size 38 40 42 44 46 48 50 52 54 Finished back length along the center back seam (without collar stand) 99,3-102,3 99,5-108,5 99,7-108,7 99,9-108,9 100,1-109,1 100,3-109,3 100,5-109,5 100,7-109,7 100,9-109,9 Finished sleeve length 57,8-60,0 58,4-64,5 59,0-64,9 59,6-65,3 60,3-65,7 60,9-66,2 61,6-66,6 62,2-67,1 62,8-67,6 -
Main fabric. For this garment we recommend using twill fabrics with or without various coatings with or without waterproof surface of different weights and textures. The fabric can be natural, synthetic or blended.
As a lining use the fabrics with density and plasticity suitable for the shell fabric, made out of natural, synthetic or blended fibre.
Interfacing material. For a higher quality result we recommend using iron-on woven interfacing, iron-on or sew-on non-woven interfacing. Iron-on woven interfacing materials 18 gsm and 55 gsm 150 cm wide are required for the garment’s pieces interfacing. Select the right weight of the interfacing depending on your main fabric’s weight.
The following interfacing is recommended:
1. Fusible interfacing fabric 103 gsm.
2. Non-woven iron-on interfacing 30 gsm.
3. Non-woven sew-on interfacing 60 gsm.
-
The amount of fabric in meters.
Size
38
40
42
44
46
48
50
52
54
Main fabric, wide 140 cm
2,55-2,65
2,65-2,85
2,70-2,90
2,75-2,95
2,80-3,05
2,90-3,10
2,90-3,15
3,05-3,20
3,10-3,25
Lining fabric, wide 140 cm(for the front and back)
1,15-1,20
1,15-1,25
1,20-1,25
1,20-1,25
1,20-1,30
1,55-1,60
Lining fabric, wide 140 cm(for the sleeve pieces)
0,65-0,70
0,65-0,75
0,70-0,75
Lining fabric, wide 140 cm(for pocket lining)
0,35
Interfacing (density 55 g/m2; width 150 cm)
1,30-1,50
Interfacing (density 18 g/m2; width 150 cm)
0,35
Fusible interfacing fabric103 g/m2, wide 90 cm
0,40
Non-woven iron-on interfacing30 g/m2, wide 90 cm
0,40
Non-woven sew-on interfacing60 g/m2, wide 105 cm
0,30
Attention! We give an exact fabric consumption for a tight layout scheme of the details, without the extra seam allowances for the fitting and rough cutting. All pattern details should be arranged on an opened fabric sheet strictly on grain in one direction, each pattern piece must be cut out only once.
Accessories:
1. Button 25-27 mm in diameter - 12 pcs.
2. Button 20-22 mm in diameter - 6 pcs.
3. Button 15-18 mm in diameter - 5 pcs.
4. Button 10mm in diameter - 8 pcs.
5. Hook for the collar stand, metal, 20 mm wide - 1 pc.
6. Double-cap rivets, metal, 6-7 mm in diameter - 4 pcs.
7. Leather-covered metal buckle with inner width 50 mm - 1 pc (for the belt).
8. Leather-covered metal buckle with inner width 30 mm - 2 pc (for the sleeve strap).
9. Metal buckle with inner width 25 mm - 1 pc (for the throat latch).
10. Chain hanging loop, metal - 1 pc.
11. D-ring with the inner width 20 mm, metal - 3 pcs (for the D-ring holders).
-
01. Buttonhole sewing machine or usual sewing machine with the buttonhole function;
02. An iron with or without steam;
03. Regular presser foot;
04. Wooden iron;
05. Ironing desk or console table;
06. Hand needle for basting;
07. Machine needles №80-90 for the main fabric;
08. Machine needles №70-80 for the lining;
09. Paper scissors;
10. Scissors for textile cutting;
11. Snaps pressing machine to install accessories and polyteny dies depending on diameter.
12. Stitch piercer tool;
13. Ironing desk or console table.
-
The pattern in your order will be in two print options:
1. For printing on A4/Letter. You need to print the pattern on a regular printer on A4/Letter sheets, then glue the sheets, cut the pattern and you can sew! A test square for checking the A4/Letter print scale is located on the first sheet of the pattern file.
2. For printing on a large format plotter. A test square for checking the plotter scale is located on the pattern sheet.
