PDF sewing pattern of jacket.
The price is for each size. You can buy only each size separately.
Pattern in your order will be in two print versions: by printer (on A4/Letter sheets) and by plotter (on large-scale sheets)
After payment, links for downloads of patterns are sent to your e-mail. For registered users download links are also available in personal account in the section "My Orders".
The size of this pattern is from 38 to 62 ( it's Russian sizes, see size chart )
The pattern in each size is in five ranges of height: 152-158, 158-164, 164-170, 170-176, 176-182 cm.
Buy carefully - choose the right size.
All documents, multimedia and texts posted on www.en-grasser.com are the intellectual property of GRASSER LLC. Patterns and master classes are provided to buyers for personal use. Resale of patterns and master classes is prohibited. Public offering of our products and links to their downloading - on the Internet, social networks and in the media - is a violation and carries a penalty in accordance to applicable law.

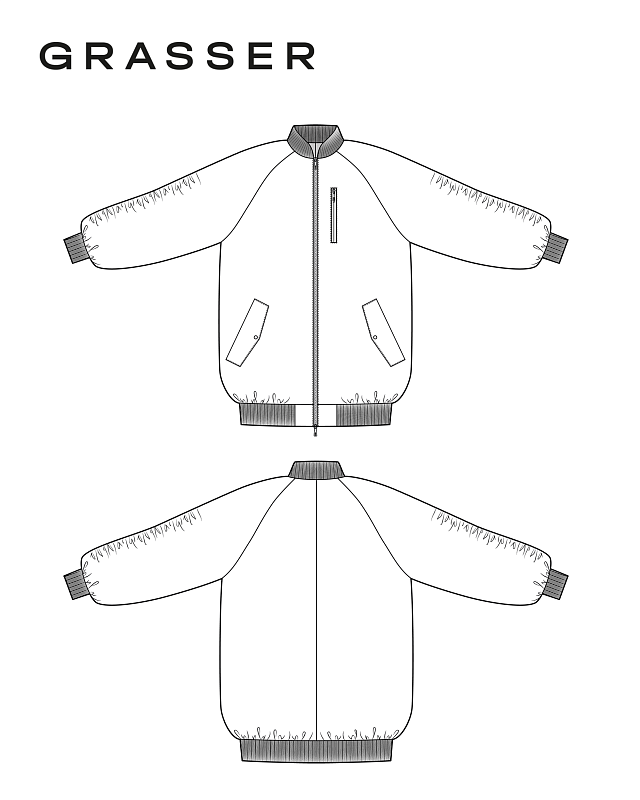

Jacket pattern. Oversized loose bomber jacket, straight silhouette, below hip line length, lined and insulated. The centre closure features a zipper with underlap. The front has jetted pockets with a flap. The left front features a chest welt jetted pocket with a zipper. The raglan sleeve has an upper seam and a lower seam. The upper sleeve seam has a gathering which starts 10 cm below the shoulder point. The lower sleeve seam is gathered as well. The neckline is round, finished with a stand collar.
The hem of the garment is finished with an attached waistband 7.0 cm wide.
The hem of the sleeve is finished with an attached cuff 7.0 cm wide.
Eases added to a pattern, cm:
Finished back length along the center back seam (from neckline to waistband): size 38: 68,9-74,0, size 40: 69,0-79,5, size 42: 69,1-79,6, size 44: 69,2-79,7, size 46: 69,3-79,8, size 48: 69,4-79,9, size 50: 69,5-80,0, size 52: 69,6-80,1, size 54: 69,7-80,2, size 56: 69,8-80,3, size 58: 69,9-80,4, size 60: 72,8-80,5, size 62: 73,3-81,0.
Finished sleeve length (from neckline to cuff): size 38: 64,6-69,9, size 40: 65,0-73,5, size 42: 65,3-73,9, size 44: 65,7-74,2, size 46: 66,0-74,5, size 48: 66,4-74,8, size 50: 66,7-75,2, size 52: 67,1-75,6, size 54: 67,4-75,9, size 56: 67,8-76,1, size 58: 68,1-76,4, size 60: 70,4-76,7, size 62: 70,7-77,0.
Use as a lining the fabrics with plasticity and density characteristics suitable to the shell material, made of natural, synthetic or blended fibre.
Use the 100-150 g/m2 ISOSOFT 34 as an insulate material, it’s a new-generation synthetic insulator with a protection layer on both sides.
Use a rib knit or kashkorse for cuffs, waistband and collar or ready made rib details.
For better quality of sewing, we recommend to use the interfacing material. For example you may use 32 g/m2 density 140 cm, width woven interfacing. The density of the interfacing material depends on the main fabric density.For better sewing quality, we recommend strengthening some details with a non-fusible facing straightener of 50 g/ m2 and with the width of 90 cm.
Amount of Fabrics (in metres):
Main fabric, wide 140 cm: size 38: 2,05-2,20, size 40: 2,10-2,35, size 42: 2,15-2,40, size 44: 2,15-2,45, size 46: 2,20-2,45, size 48: 2,25-2,55, size 50: 2,30-2,60, size 52: 2,30-2,65, size 54-56: 2,40-2,70, size 58: 2,45-2,75, size 60: 2,55-2,75, size 62: 2,55-2,80.
Finishing fabric, wide 100 cm (rib-knit fabric): size 38-44: 0,40, size 46: 0,45, size 48-62: 0,50.
Lining fabric, wide 140 cm: size 38: 1,45-1,55, size 40: 1,50-1,65, size 42: 1,70-1,80, size 44: 1,75-1,95, size 46: 1,80-2,00, size 48: 1,85-2,05, size 50: 1,85-2,10, size 52: 1,90-2,10, size 54: 1,95-2,15, size 56: 1,95-2,20, size 58: 2,00-2,20, size 60: 2,05-2,25, size 62: 2,10-2,30.
Interfacing (density 34 g/m2; width 150 cm): size 38: 0,80, size 40- 42: 0,85, size 44-52: 0,90, size 54-62: 0,95.
Non-fusible facing straightener of 50 g/m2 and with the width of 90 cm: size 38-62: 0,10.
Insulation material ISOSOFT 34 100-150g/m2, wide 140 cm: size 38: 1,90-2,05, size 40: 1,95-2,20, size 42: 1,95-2,25, size 44-46: 2,00-2,30, size 48: 2,05-2,35, size 50-52: 2,10-2,40, size 54- 56: 2,20-2,50, size 58: 2,25-2,50, size 60: 2,35-2,55, size 62: 2,40-2,65.
Reps ribbon with a width of 20 mm: size 38: 0,80, size 40- 42: 0,85, size 44-56: 0,90, size 58-62: 0,95.
Attention! Given exact fabric consumption can be used only when pattern details are placed on a fabric sheet close to each other. All pattern details should be arranged on an opened fabric sheet strictly on grain in one direction, each pattern piece must be cut out only once.
The pattern in your order will be in two print options:
1. For printing on A4/Letter. You need to print the pattern on a regular printer on A4/Letter sheets, then glue the sheets, cut the pattern and you can sew!
A test square for checking the A4/Letter print scale is located on the first sheet of the pattern file.
2. For printing on a large format plotter.
A test square for checking the plotter scale is located on the pattern sheet.
