Jumpsuit, pattern №793

Size:

Height:

$11

After payment, links for downloads of patterns are sent to your e-mail. For registered users download links are also available in personal account in the section "My Orders".

Info

Comments

Questions

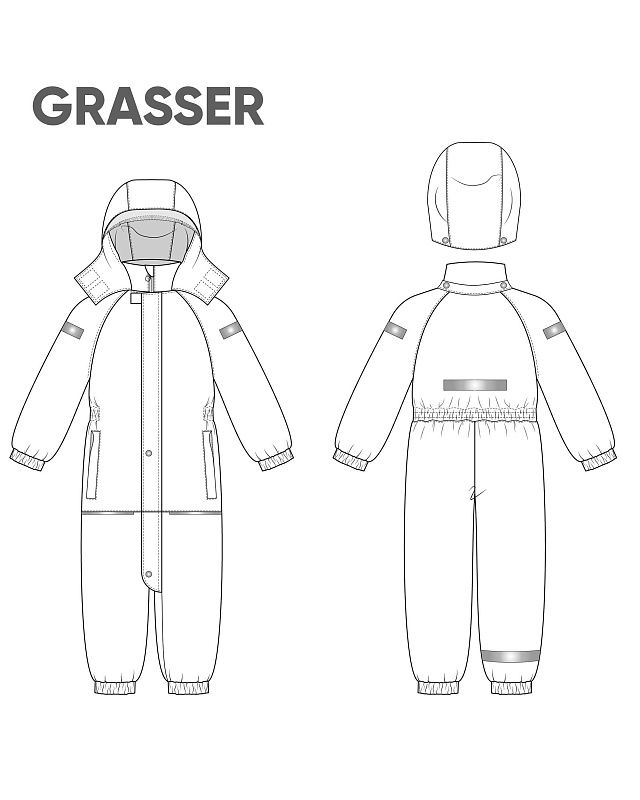

Jumpsuit pattern. This is an overall for children of a straight silhouette with insulation and lining. The front part is a separate detail cut along the thigh line. The central side fastener passes into the left leg – a zipper tape fastener, with a windproof placket. On the placket there are buttons and a sticky fastener (“Velcro”) for fixation. The back is cut at the waist, a drawstring with an elastic band is inserted into the seam. The hem of the raglan sleeves is finished with shirring. On the front there are vertical welt pockets with a leaflet with set-in ends and a zipper fastener. The neckline is finished with a stand-up collar. The hood is helmet-shaped, with a cut central part, the front edge of the hood is finished with a knitted insert and with a facing with a sticky fastener (“Velcro”). The hood is fastened to the placket, located in the neckline seam on the collar stand, with 4 snap fasteners. The pants hem is finished with an elastic band. There are reflective elements on the sleeves, along the pants hem and in the relief of the front. The downside collar, the hood lining, the sleeve facing and the lining of the upper back of the pants in our garment are cut from fleece. The details of the downside collar and the facing of the sleeve can be cut from the fabric of the outside part. The hood lining and the lining of the upper back of the pants can be cut from a lining or knitted fabric.

Eases added to a pattern:

Bust-line: 30.0 cm. Waist-line: 30.0 cm. Hips-line: 29.0 cm. Shoulders: 21.0 cm.

Garment Length Measurements, cm:

Height	47/74	49/80	51/86	53/92	55/98
Finished back length along the center back	71.8	77.2	83.1	88.4	94.2
Finished sleeve length on upper seam (from meeting point of neck and shoulders)	37.4	39.8	42.2	44.6	47.0

Fabric suggestion:

We recommend using shell fabrics with a membrane for the garment lining fabrics, fleece, jersey (ribbed knit) for the cuffs. As well as synthetic jacket insulation with a protective layer on both the sides, for example, ISOSOFT 200 gr/m2.

Interfacing materials. For better tailoring we recommend using a side booster with a non-adhesive density of 50 g/m2, a width of 90 cm.

Facing straightener is a padding volumetric non-fusible material.

Use: Designed to add volume to separate details of the garment.

Advantages: Voluminous, non-elastic, not stretchable. Gives shape and volume. Helps products maintain their strength and wear resistance after wearing, washing, and dry cleaning. Perfectly preserves the properties of the upper material and the shape of the garment.

Amount of Fabrics (in metres):

Height	47/74	49/80	51/86	53/92	55/98
Main fabric, wide 140 cm (color #1)	0,60	0,65	0,70	0,75	0,80
Main fabric, wide 140 cm (color #2)	0,95	0,98	1,00	1,03	1,05
Main fabric, wide 140 cm (total amount of fabrics)	1,35	1,42	1,52	1,62	1,70
Fleece wide 140 cm	0,48	0,50	0,52	0,53	0,55
Rib knit fabric (kashkorse or ribana), wide 140 cm	0,15	0,15	0,15	0,15	0,15
Lining fabric, wide 140 cm	0,82	0,88	0,97	1,10	1,20
Insulation material wide 140 cm	1,32	1,42	1,52	1,62	1,72
Insulation material wide 140 cm	0,54	0,57	0,59	0,62	0,65
Elastic band, 2.5 cm wide	1,48	1,51	1,54	1,57	1,60

Attention! We give an exact fabric consumption for a tight layout scheme of the details, without the extra seam allowances for the fitting and rough cutting. All pattern details should be arranged on an opened fabric sheet strictly on grain in one direction, each pattern piece must be cut out only once.

Accessories:
1. Snap fasteners – 6 pieces.
2. Velcro tape (sticky fastener), width of 2 cm, length of 10 cm.
3. Central zipper fastener – 1 piece, length of:
s. 74 – 50 cm, s. 80 – 53 cm, s. 86 – 56 cm, s. 92 – 59 cm, s. 98 – 62 cm.
4. Pocket zipper – 2 pieces, length of:
s. 74 – 12,5 cm, s. 80 – 13 cm, s. 86 – 13 cm, s. 92 – 13,5 cm, s. 98 – 13,5 cm.
5. Sew-on reflective tape – 75 cm.
6. Reflective tape “Thermo” – 30 cm.
7. Elastic band, width of 2,5 cm.

Needed length of elastic tape, width of 2.5 cm:

Height	47/74	49/80	51/86	53/92	55/98
For sleeve	22.8	23.2	23.6	24.0	24.4
For garment hem	29.5	30.0	30.5	31.0	31.5
For back	28.0	29.0	30.0	31.0	32.0

Pattern is given with seam allowances.

Detailed sewing instruction with step-by-step photos of sewing is attached to the pattern in the kit.

Degree of difficulty - «Advanced».

The photos shows a jumpsuit sewed at the GRASSER for pattern №793.

For sewing you will need the following equipment:

1. Multipurpose sewing machine;
2. An iron with steam;
3. Two-legged machine foot, walking or Teflon machine foot (depending on the raincoat fabric type), one-legged machine foot;
4. Wooden iron;
5. Ironing desk or console table;
6. Hand needle for basting;
7. Machine needles Microtex №80;
8. Paper scissors;
9. Scissors for textile cutting;
10. Snaps pressing machine to install accessories press studs, depending on the diameter.

The pattern in your order will be in two print options:

1. For printing on A4/Letter. You need to print the pattern on a regular printer on A4/Letter sheets, then glue the sheets, cut the pattern and you can sew!

A test square for checking the A4/Letter print scale is located on the first sheet of the pattern file.

2. For printing on a large format plotter.

A test square for checking the plotter scale is located on the pattern sheet.
