The photo also shows: trousers on pattern №1316 , sweatshirt on pattern №52, T-shirt on pattern №955

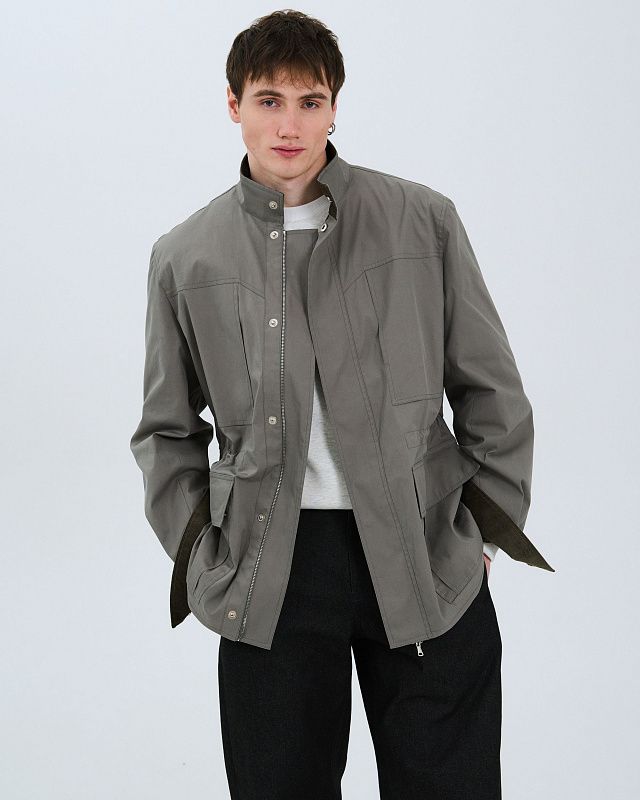

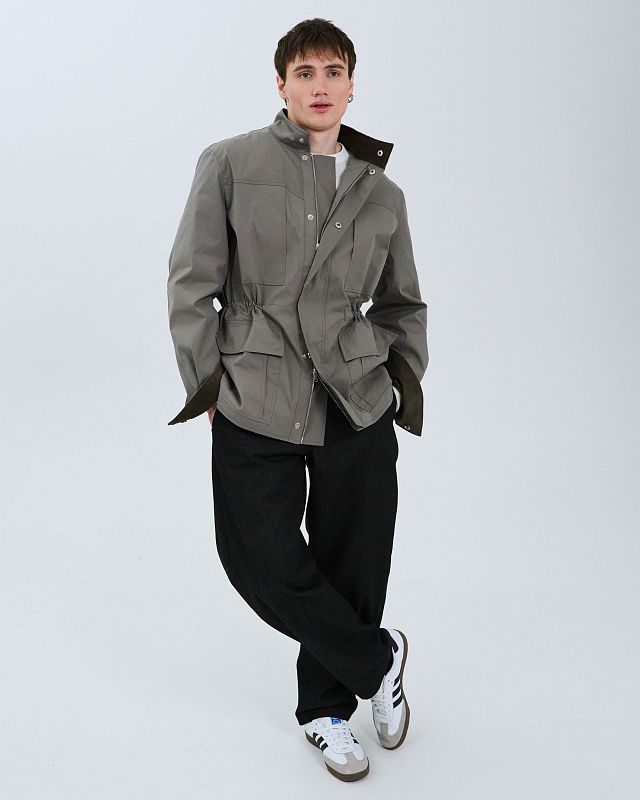

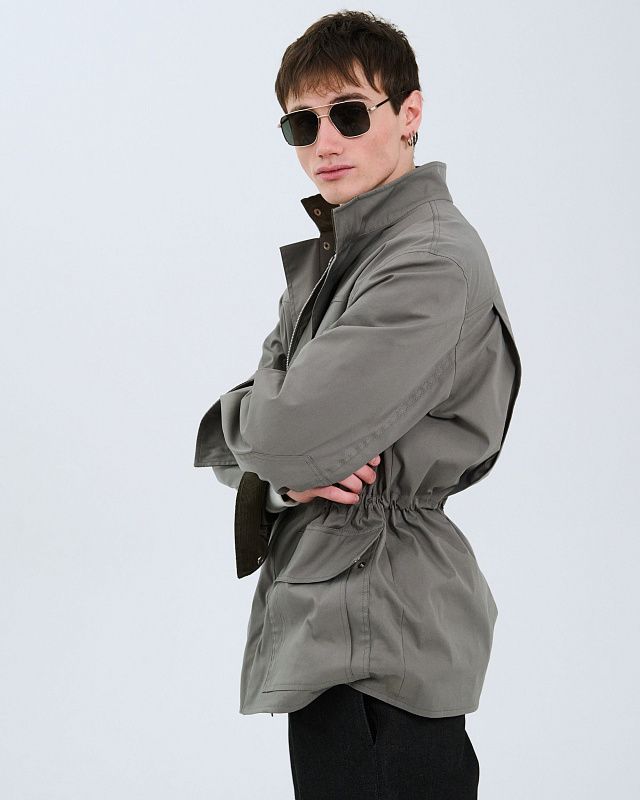

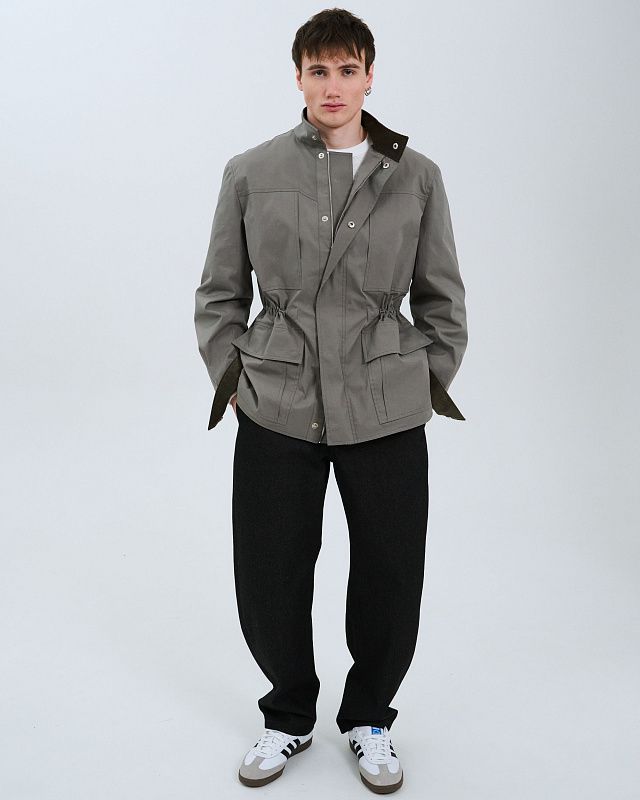

Men's jacket, pattern №1315

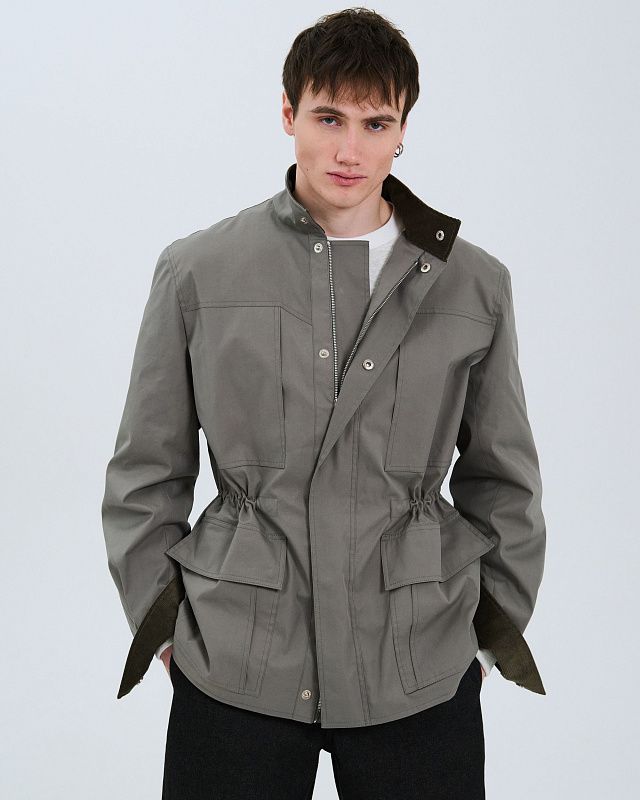

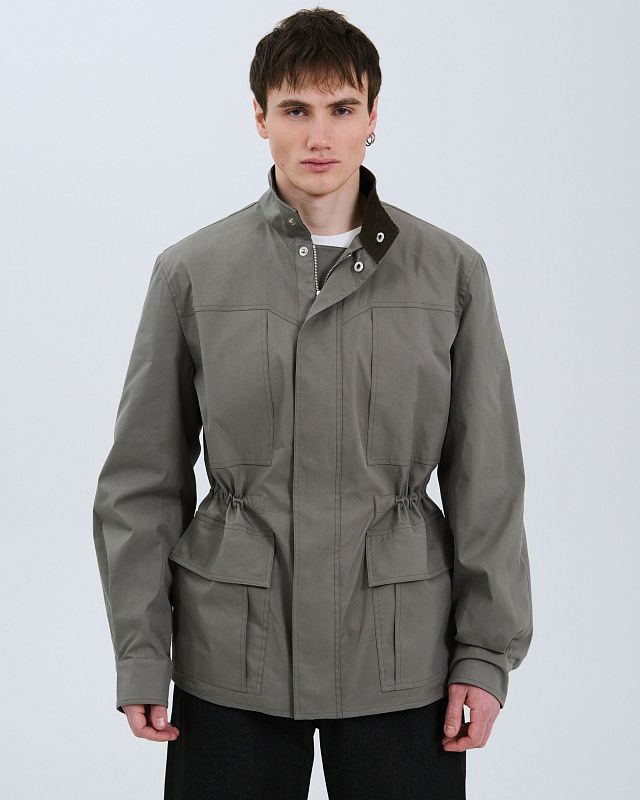

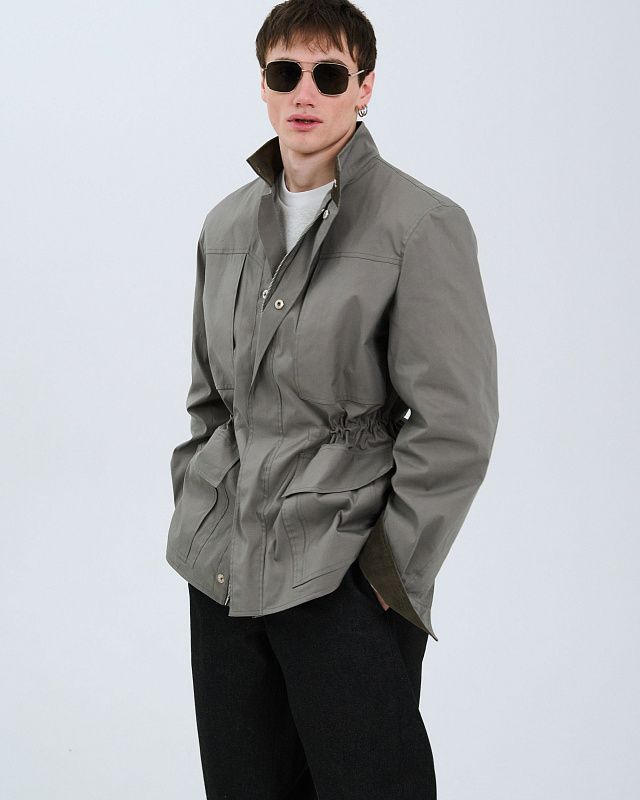

Men's relaxed-fit jacket featuring a stand collar and a dual zip-and-snap front closure. Front patch pockets; back yoke with vertical pleats. Adjustable drawstring at the waist. Set-in sleeves with buttoned cuffs.
Difficulty: 5/5
Instructions with photo
Plotter 900 + А4/Letter
Sizes:
-
size 42, height 170-176
-
size 42, height 176-182
-
size 44, height 170-176
-
size 44, height 176-182
-
size 44, height 182-188
-
size 44, height 188-194
-
size 46, height 170-176
-
size 46, height 176-182
-
size 46, height 182-188
-
size 46, height 188-194
-
size 48, height 170-176
-
size 48, height 176-182
-
size 48, height 182-188
-
size 48, height 188-194
-
size 50, height 170-176
-
size 50, height 176-182
-
size 50, height 182-188
-
size 50, height 188-194
-
size 52, height 170-176
-
size 52, height 176-182
-
size 52, height 182-188
-
size 52, height 188-194
-
size 54, height 170-176
-
size 54, height 176-182
-
size 54, height 182-188
-
size 54, height 188-194
-
size 56, height 170-176
-
size 56, height 176-182
-
size 56, height 182-188
-
size 56, height 188-194
-
size 58, height 170-176
-
size 58, height 176-182
-
size 58, height 182-188
-
size 58, height 188-194
-
size 60, height 170-176
-
size 60, height 176-182
-
size 60, height 182-188
-
size 60, height 188-194
-
size 62, height 170-176
-
size 62, height 176-182
-
size 62, height 182-188
-
size 62, height 188-194
-
size 42, height 182-188
-
size 42, height 188-194
-
-
Size:
- 42
- 44
- 46
- 48
- 50
- 52
- 54
- 56
- 58
- 60
- 62
Height:
- 170-176
- 176-182
- 182-188
- 188-194
$8.80
$11
After payment, links for downloads of patterns are sent to your e-mail. For registered users download links are also available in personal account in the section "My Orders".
Info
Comments
Questions
-

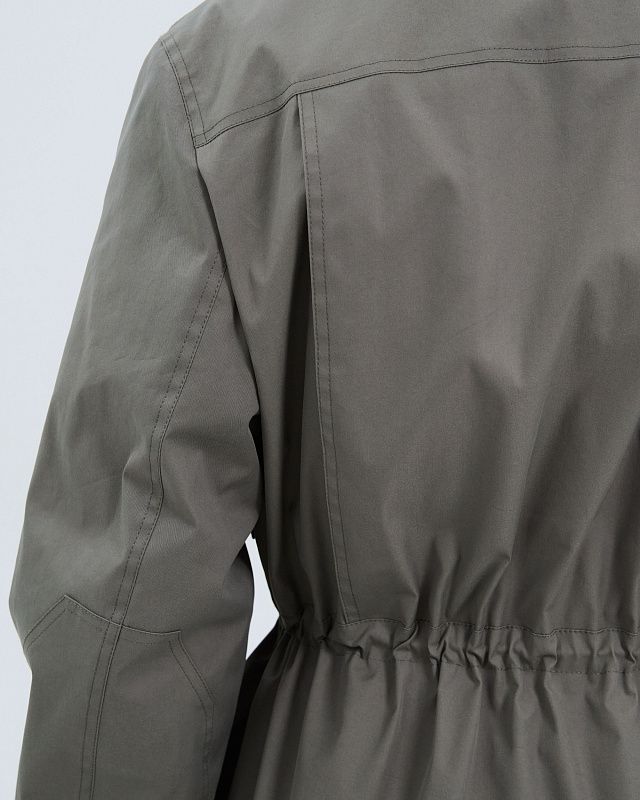

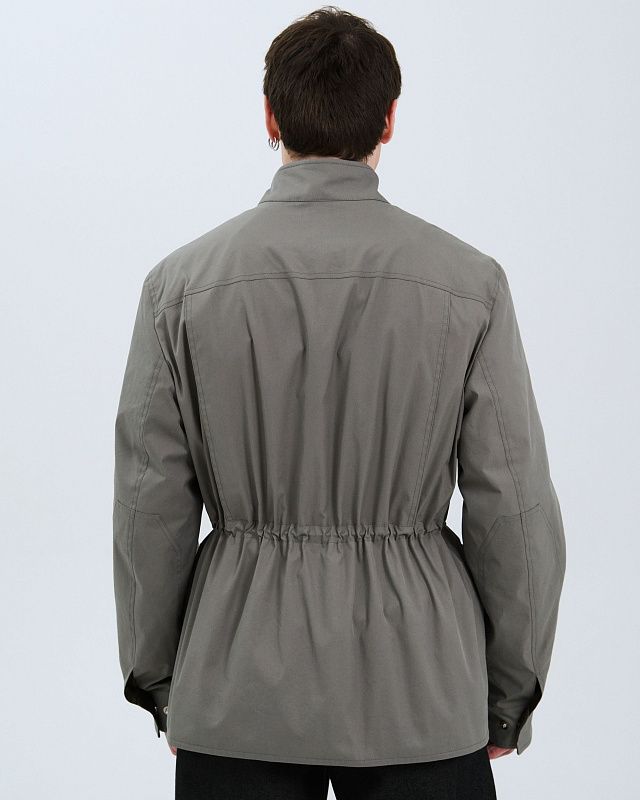

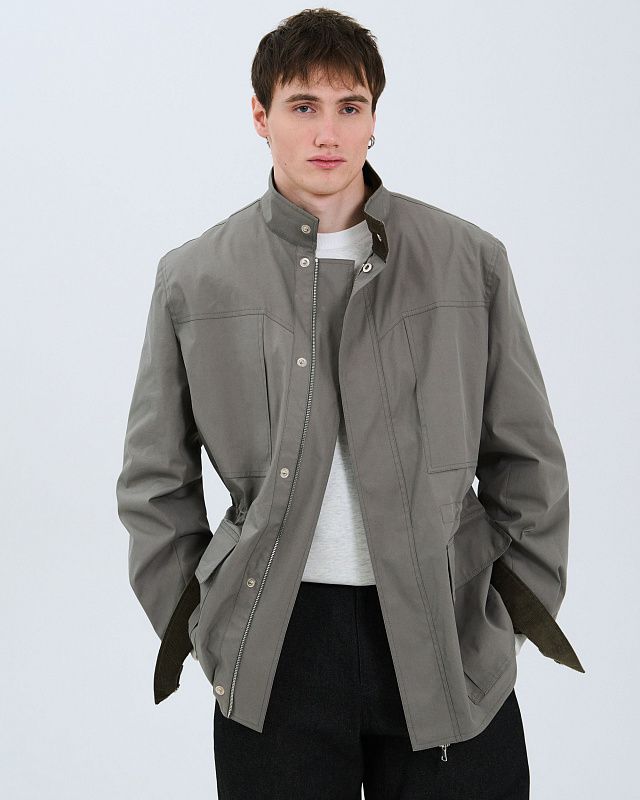

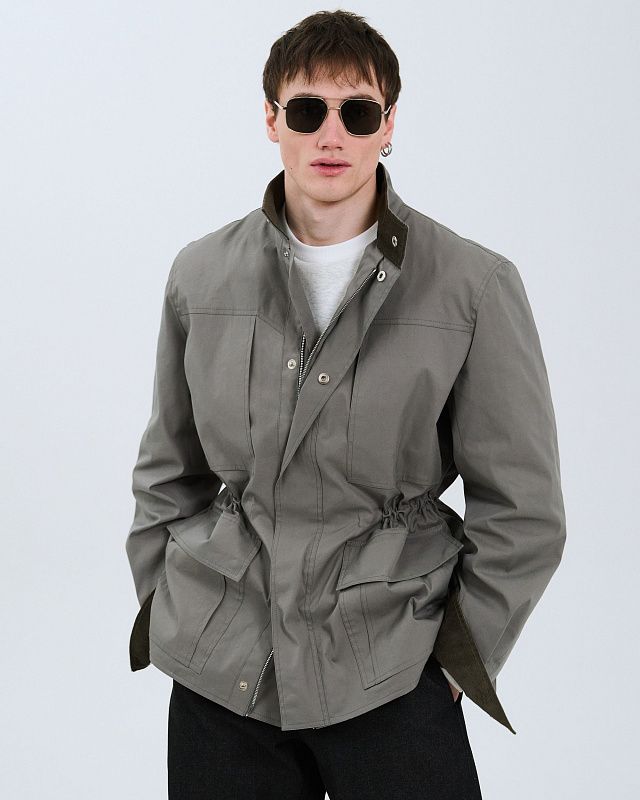

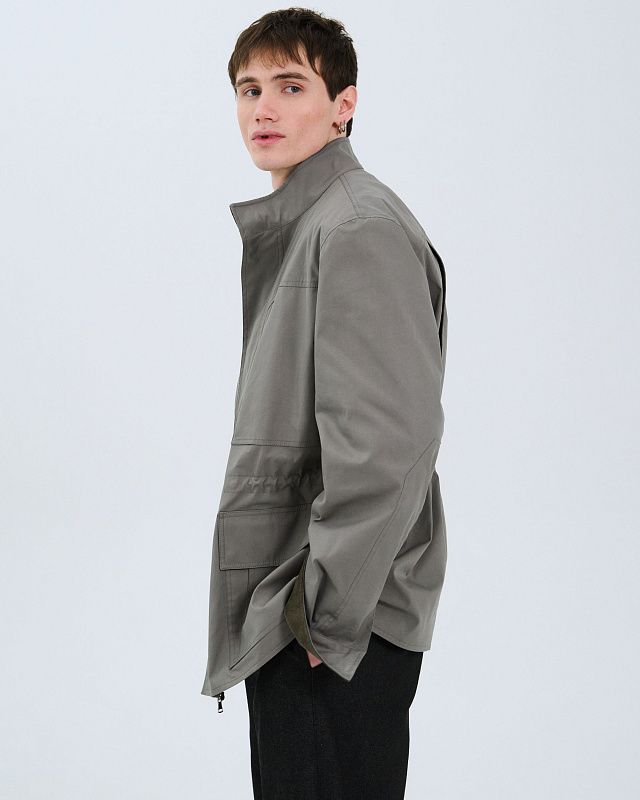

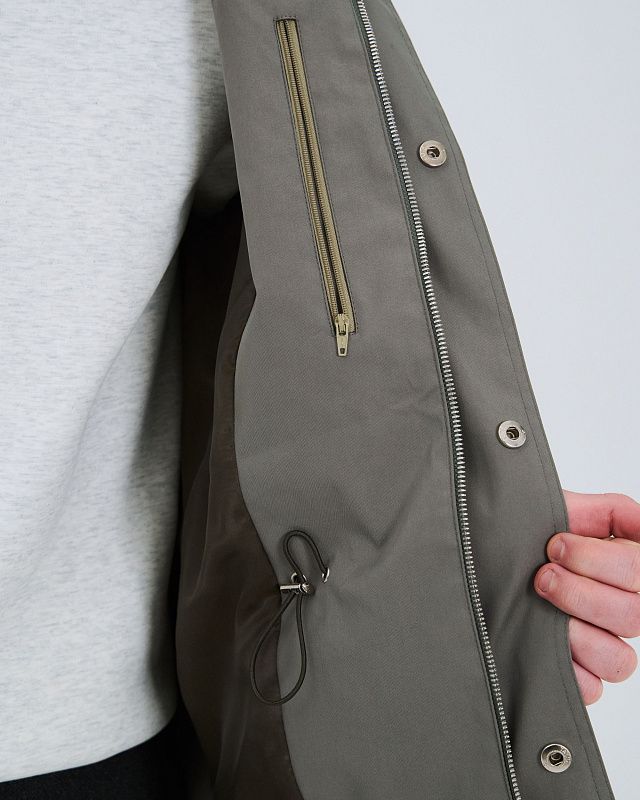

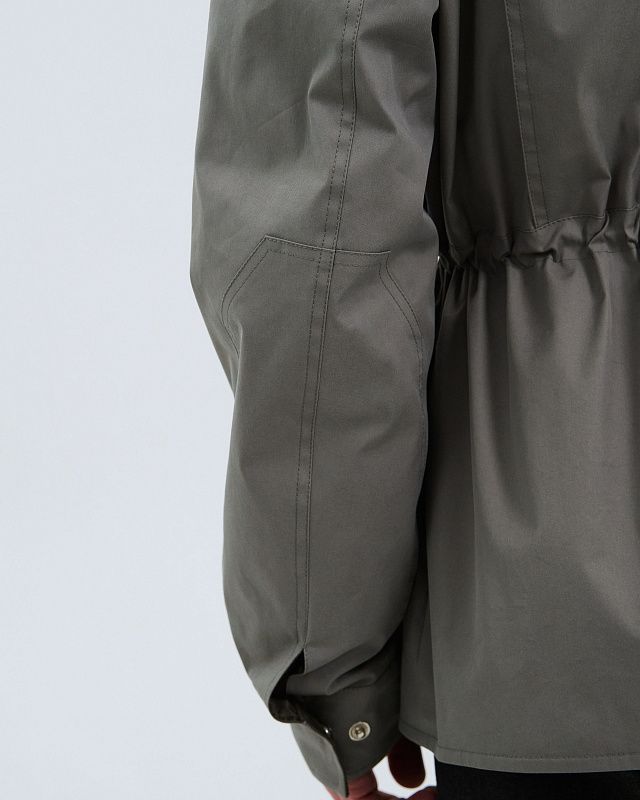

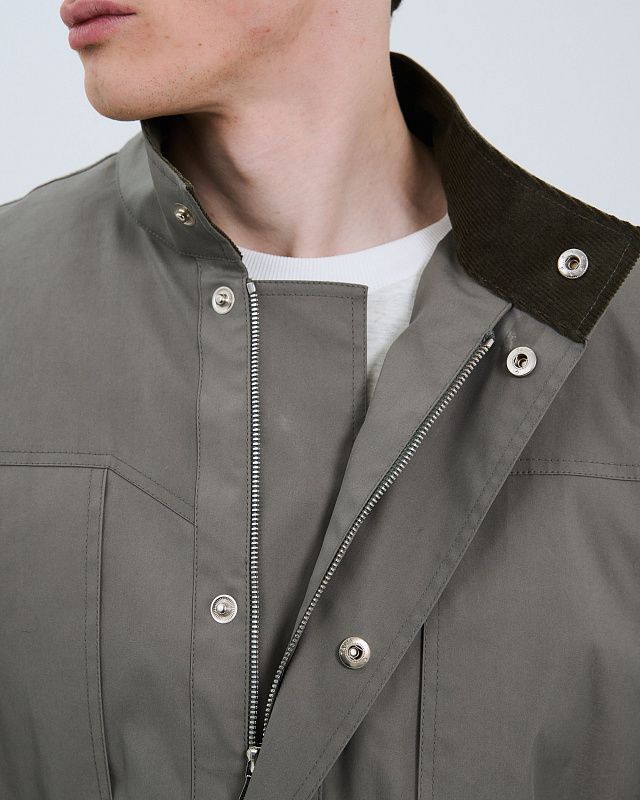

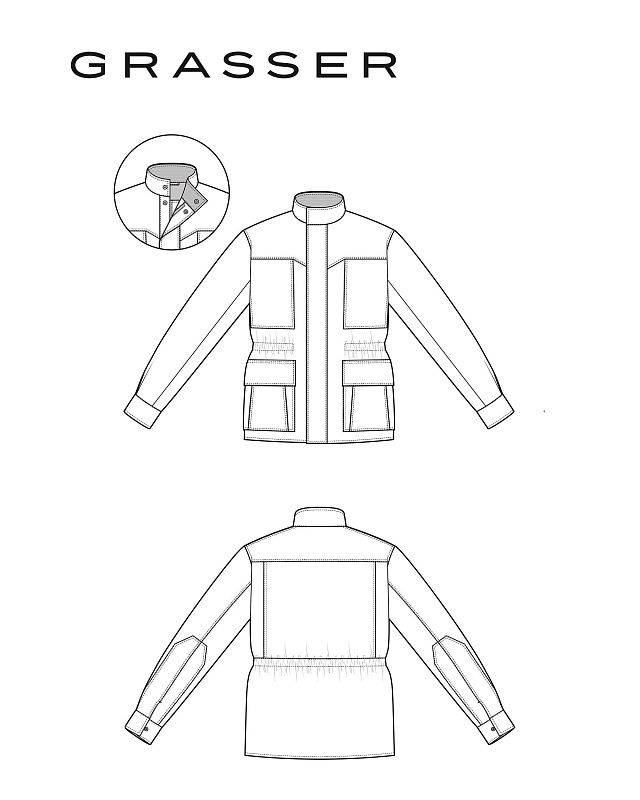

This is a loose-fitting, straight-silhouette, hip-length jacket, fully lined. The centre front features a zipper closure, finished with an outer and inner storm flaps. The outer placket is topstitched and fastens with 5 press studs on the underside. The shoulder line is dropped by 4.0-6.0 cm (depending on the garment size). The front is designed with an attached yoke and patch pockets. The upper part has a patch pocket with a vertical opening. The lower part features a patch pocket with topstitched pleats and a flap. The flap is secured on the underside with 2 press studs. The back has a seam at the waistline, featuring an attached yoke and two vertical action pleats located between the yoke and the waistline closer to the side seams. There is a casing at the waist on the front and back for adjustable fit, using an elastic cord and cord locks. The cord is threaded through the eyelets to the inside of the garment. The sleeves are set-in, full-length, and two-piece (front and elbow seams). The upper and lower sleeve sections feature an additional decorative shaped paneling at the elbow seam area. There is a slit in the elbow seam. The sleeve opening features a pleat and is finished with a 7.0 cm attached cuff, fastening with 2 press studs for adjustable fit. The round neckline is finished with a high collar band fastening with 1 press stud.

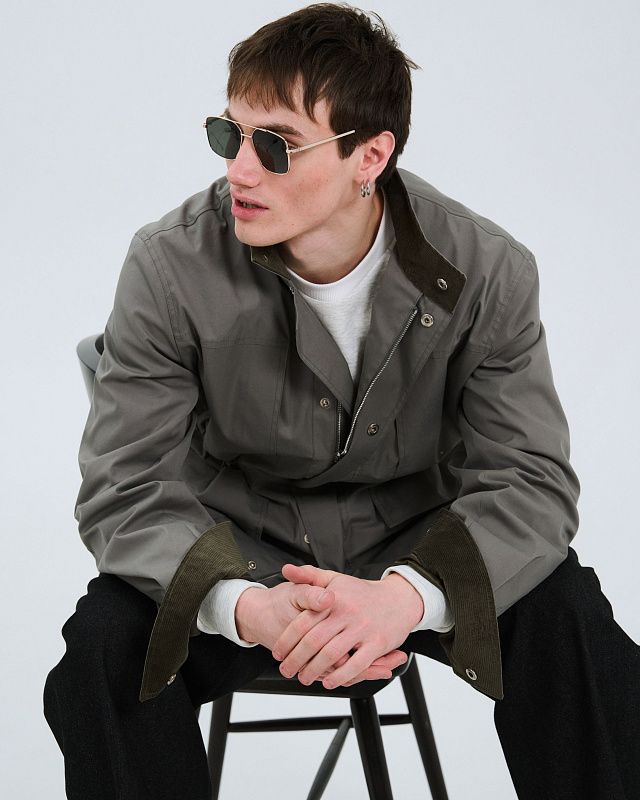

Model is wearing a size 50, height 182-188. Model parameters: Bust-line: 100 cm, Waist-line: 80 cm, Hips: 104 cm, Height: 183 cm.
-
Bust-line: 38.0 сm
Waist-line:
44.0 сm (for all height in the sizes 42-48)
46.0 сm (for all height in the sizes 50-54)
48.0 сm (for all height in the sizes 56-62)
Shoulders: 17.0 сm
Hips-line:
Size 42 44 46 48 50 52 54 56 58 60 62 25,0-22,6 26,0-23,6 27,0-24,6 28,0-25,6 31,0-28,6 32,0-29,6 33,0-30,6 36,0-33,6 37,0-34,6 38,0-35,6 39,0-36,6
-
Size 42 44 46 48 50 52 54 56 58 60 62 Finished back length along the center back 73,9-79,9 74,0-80,0 74,1-80,1 74,2-80,2 74,3-80,3 74,5-80,5 74,7-80,7 74,9-80,9 75,1-81,1 75,3-81,3 75,5-81,5 Finished sleeve length(including cuff) 66,0-71,7 66,3-72,0 66,6-72,3 66,9-72,6 67,2-72,9 67,5-73,2 67,8-73,5 67,0-73,7 68,2-73,9 68,4-74,1 68,6-74,3
-
Main fabric. For this garment, we recommend using medium-weight rainwear and outerwear fabrics. The fabrics can be with or without waterproof coatings or various types of finishes. Suitable fabrics may consist of natural, synthetic, or blended fibres.

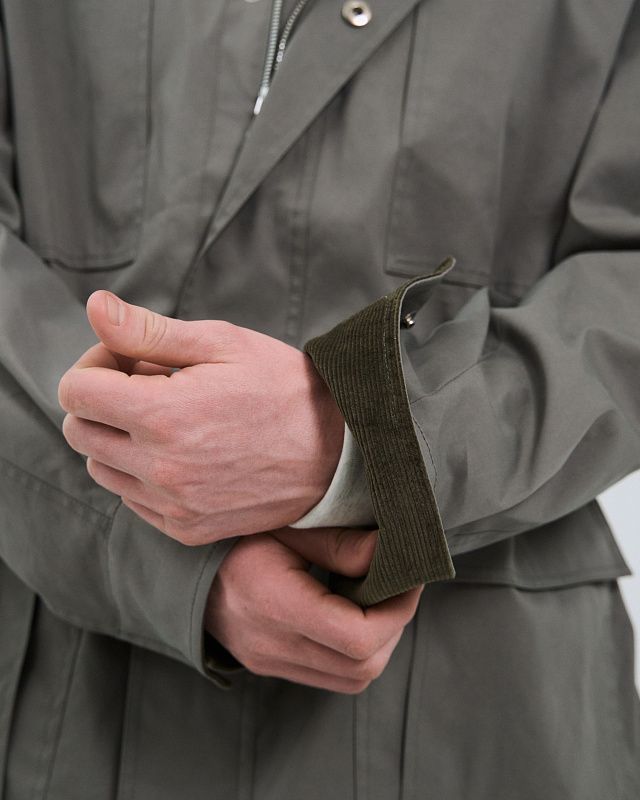

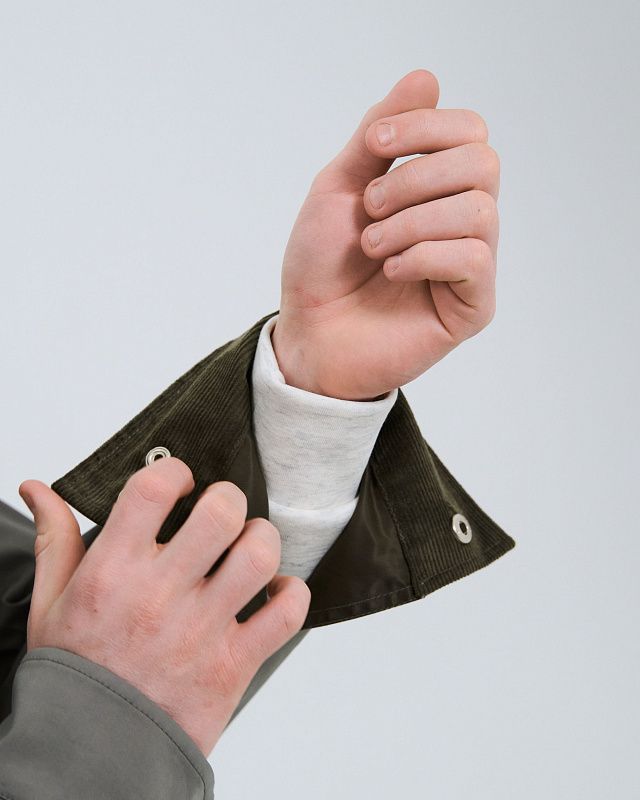

Finishing fabric. For the inner parts of the collar band and cuffs, we recommend using a variety of fabrics that match the main fabric in weight and drape. You may use faux leather, faux suede, corduroy, or denim fabrics made from natural, synthetic, or blended fibres.
Lining fabric. For the lining, use fabrics that match the main fabric in drape and weight, made from natural, synthetic, or blended fibres.
Interfacing materials. For better quality of sewing, we recommend to use the interfacing material. For example, you may use 33-39 g/m2 density 150 cm, width woven interfacing.
The density of the interfacing material depends on the main fabric density.
-
The amount of fabric in meters.
Size 42 44 46 48 50 52 54 56 58 60 62 Main fabric, wide 140 cm (main fabric totally) 2,40-2,55 2,45-2,55 2,50-2,60 2,55-2,60 2,60-2,70 2,65-2,70 2,70-2,90 2,80-2,90 2,80-3,00 2,90-3,05 2,95-3,05 Main fabric, wide 140 cm 2,30-2,40 2,35-2,50 2,40-2,50 2,45-2,60 2,50-2,65 2,55-2,65 2,60-2,75 2,70-2,80 2,75-2,90 2,80-2,90 2,85-2,95 Finishing fabric, wide140 cm 0,65
0,70
Lining fabric, wide 140 cm 1,45-1,50 1,45-1,55 1,50-1,55 1,50-1,55 1,55-1,65 1,60-1,65 1,60-1,70 1,65-1,75 1,70-1,80 1,75-1,80 1,75-1,80 Interfacing (density 33-39 g/m2; width 150 cm) 0,90 0,95
1,00
Bias fusible tape with reinforcement stitches 0,55
0,60
0,65
Fusible on grain tape
0,95
1,00
A hat cord, width 3 mm 1,05 1,10 1,15 1,20 1,25 1,30 1,35 1,40 1,45 1,45 1,50
Attention! We give an exact fabric consumption for a tight layout scheme of the details, without the extra seam allowances for the fitting and rough cutting. All pattern details should be arranged on an opened fabric sheet strictly on grain in one direction, each pattern piece must be cut out only once.
Accessories:
1. Open-end metal zipper #5, 70-80cm long – 1 pc. (for central fastening)
2. Plastic coil closed-end zipper # 3, 18cm long – 1 pc. (for inner pocket).
3. Grommet 4-5 mm in diameter - 6 pcs.
4. Double-hole cord lock (stopper) - 2 pcs.
5. Snap button with the diameter of 12.5-15.0 mm - 14 pcs.
-
- Multipurpose sewing machine;
- An iron with or without steam;
- Regular presser foot;
- Hinged cording foot;
- Wooden iron;
- Ironing desk or console table;
- Hand needle for basting;
- Machine needles MICROTEX (extra sharp) №85-95 for the main fabric;
- Machine needles №70-80 for the lining;
- Paper scissors;
- Scissors for textile cutting;
- Snaps pressing machine to install accessories grommets and press studs, depending on the diameter.
-
The pattern in your order will be in two print options:
1. For printing on A4/Letter. You need to print the pattern on a regular printer on A4/Letter sheets, then glue the sheets, cut the pattern and you can sew! A test square for checking the A4/Letter print scale is located on the first sheet of the pattern file.
2. For printing on a large format plotter. A test square for checking the plotter scale is located on the pattern sheet.
