Jacket, pattern №1269
A windbreaker jacket with a fitted waist, a stand-up collar, shoulder straps, and pockets in embossed seams, with a lining.
Advanced level
Instructions with photo
Plotter 900 + А4/Letter
Sizes:
-
size 38, height 152-158
-
size 38, height 158-164
-
size 38, height 164-170
-
size 40, height 152-158
-
size 40, height 158-164
-
size 40, height 164-170
-
size 40, height 170-176
-
size 40, height 176-182
-
size 42, height 152-158
-
size 42, height 158-164
-
size 42, height 164-170
-
size 42, height 170-176
-
size 42, height 176-182
-
size 44, height 152-158
-
size 44, height 158-164
-
size 44, height 164-170
-
size 44, height 170-176
-
size 44, height 176-182
-
size 46, height 152-158
-
size 46, height 158-164
-
size 46, height 164-170
-
size 46, height 170-176
-
size 46, height 176-182
-
size 48, height 152-158
-
size 48, height 158-164
-
size 48, height 164-170
-
size 48, height 170-176
-
size 48, height 176-182
-
size 50, height 152-158
-
size 50, height 158-164
-
size 50, height 164-170
-
size 50, height 170-176
-
size 50, height 176-182
-
size 52, height 152-158
-
size 52, height 158-164
-
size 52, height 164-170
-
size 52, height 170-176
-
size 52, height 176-182
-
size 54, height 152-158
-
size 54, height 158-164
-
size 54, height 164-170
-
size 54, height 170-176
-
size 54, height 176-182
-
size 56, height 152-158
-
size 56, height 158-164
-
size 56, height 164-170
-
size 56, height 170-176
-
size 56, height 176-182
-
size 58, height 152-158
-
size 58, height 158-164
-
size 58, height 164-170
-
size 58, height 170-176
-
size 58, height 176-182
-
size 60, height 158-164
-
size 60, height 164-170
-
size 60, height 170-176
-
size 60, height 176-182
-
size 62, height 158-164
-
size 62, height 164-170
-
size 62, height 170-176
-
size 62, height 176-182
-
-
Size:
- 38
- 40
- 42
- 44
- 46
- 48
- 50
- 52
- 54
- 56
- 58
- 60
- 62
Height:
- 152-158
- 158-164
- 164-170
- 170-176
- 176-182
$7.70
$11
After payment, links for downloads of patterns are sent to your e-mail. For registered users download links are also available in personal account in the section "My Orders".
Info
Comments
Questions
-

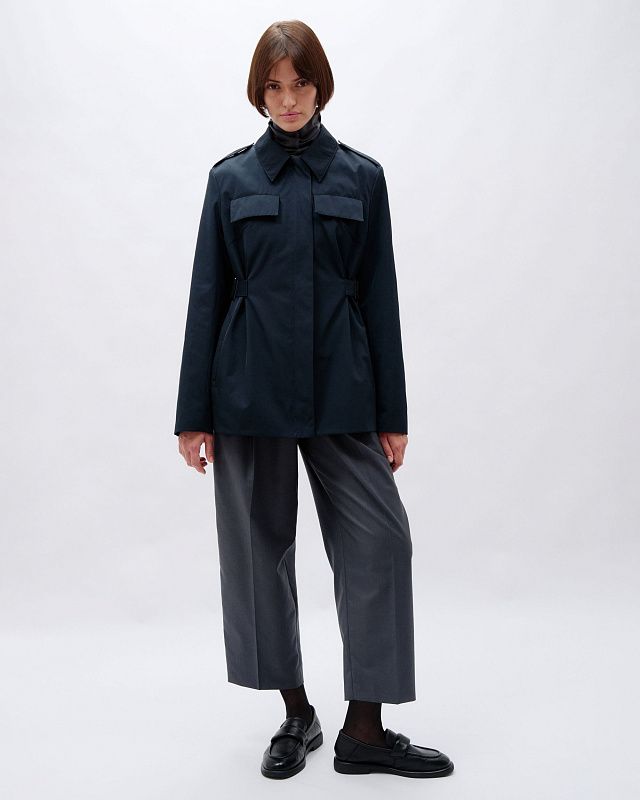

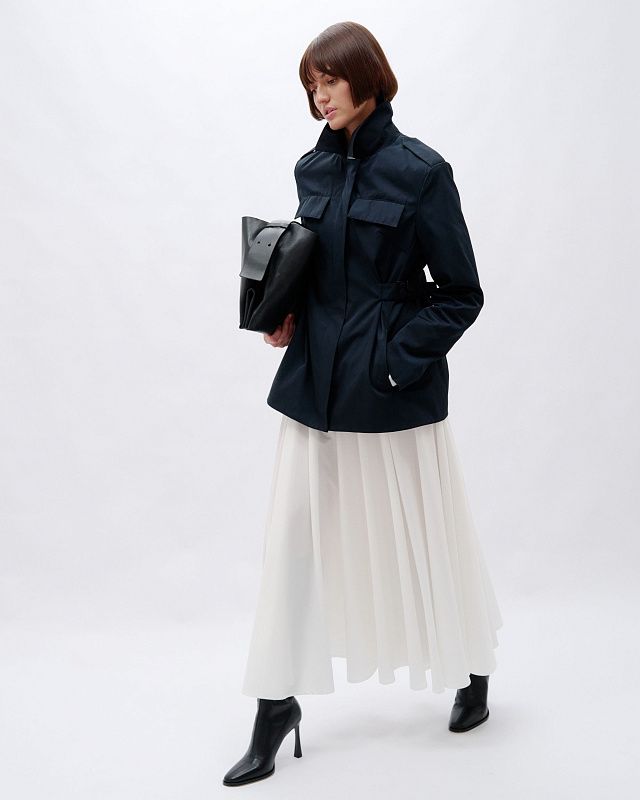

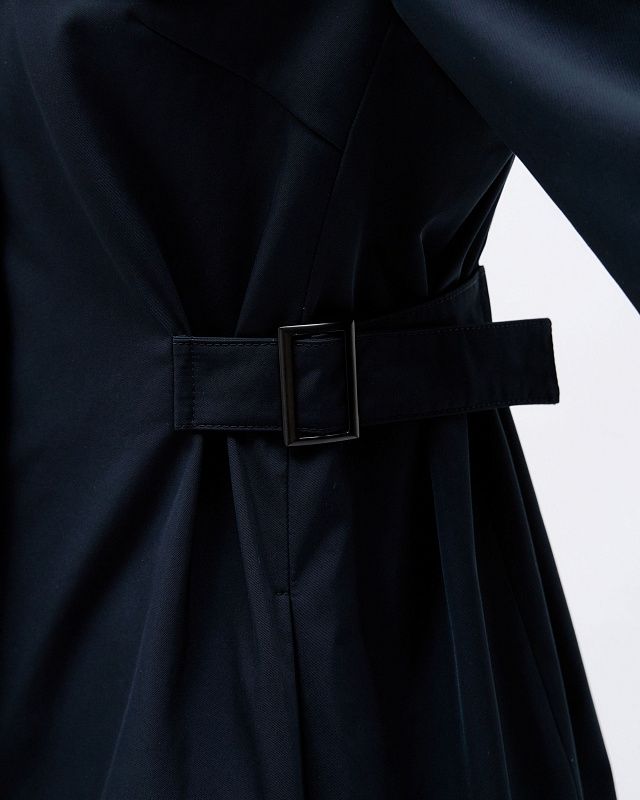

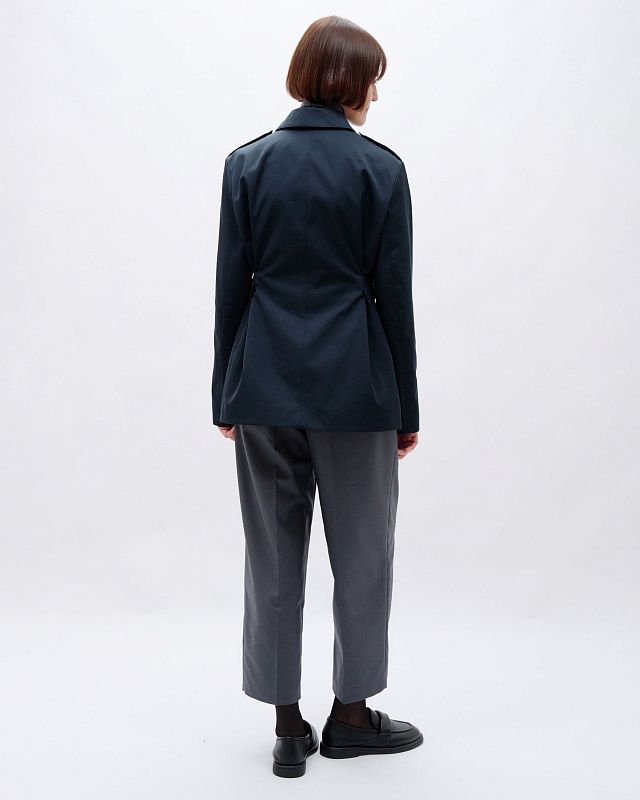

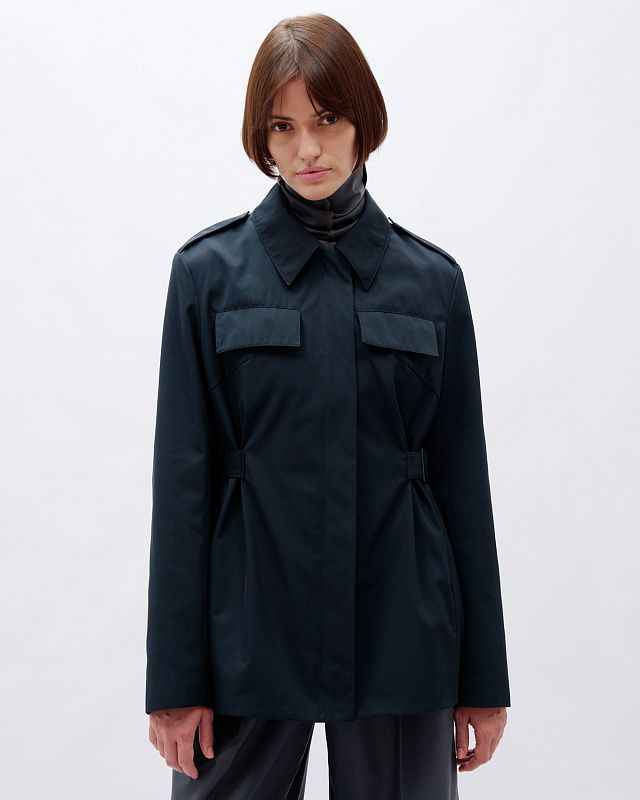

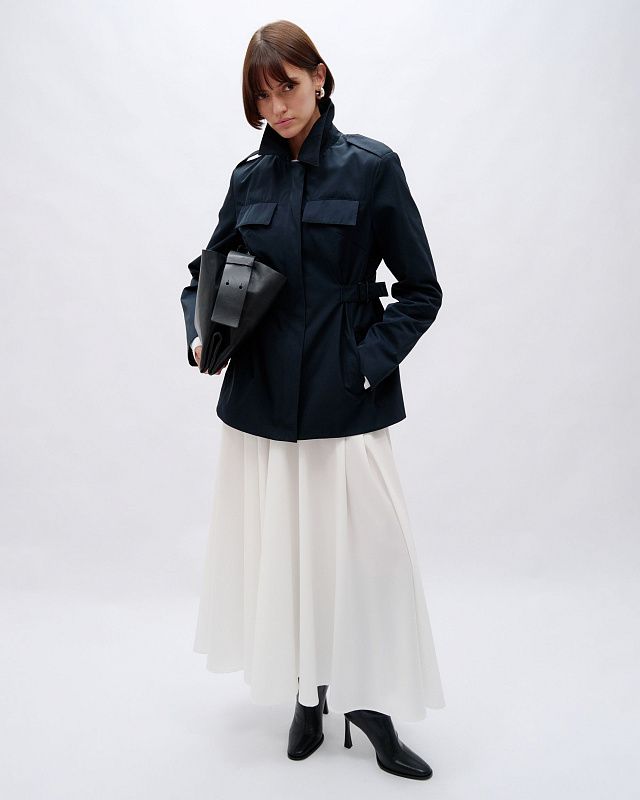

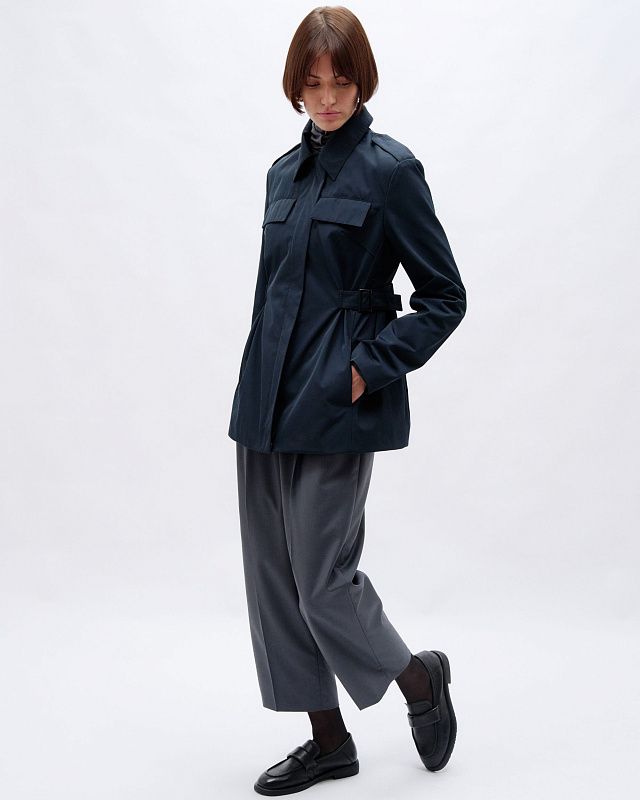

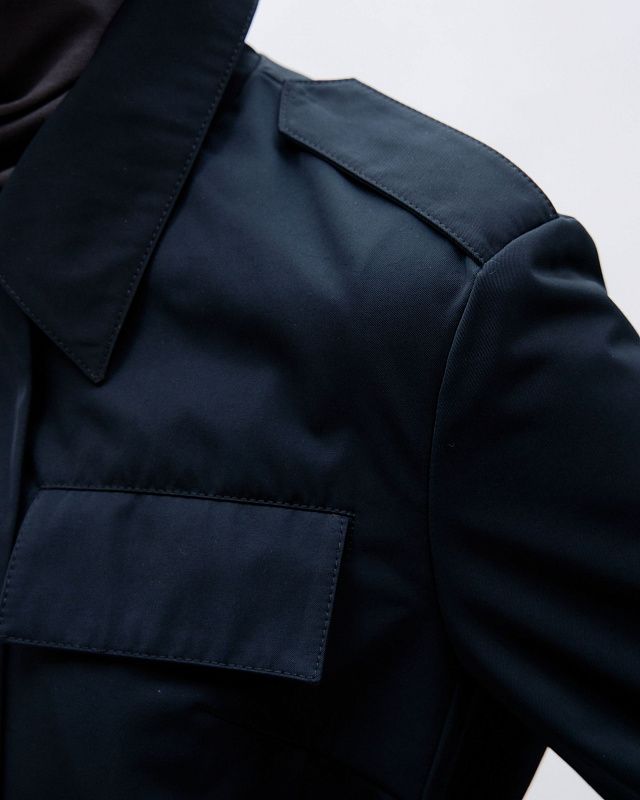

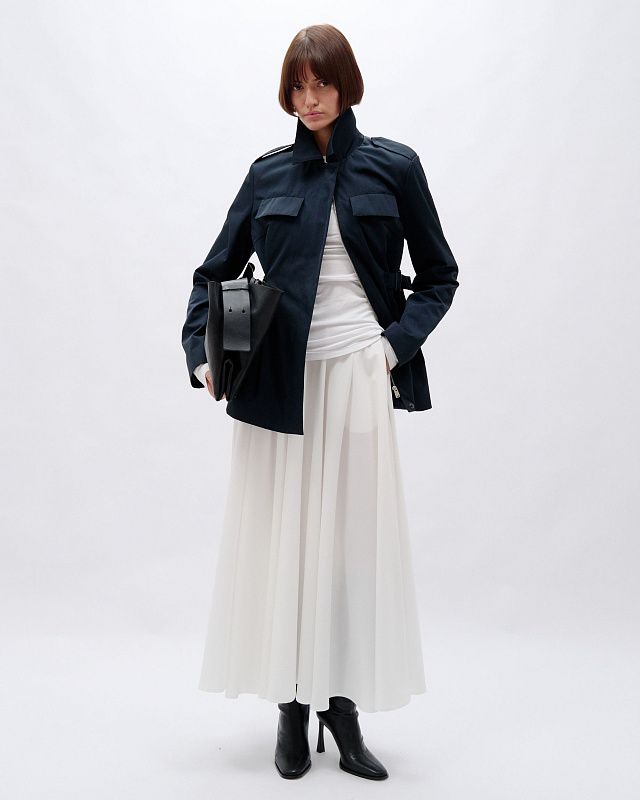

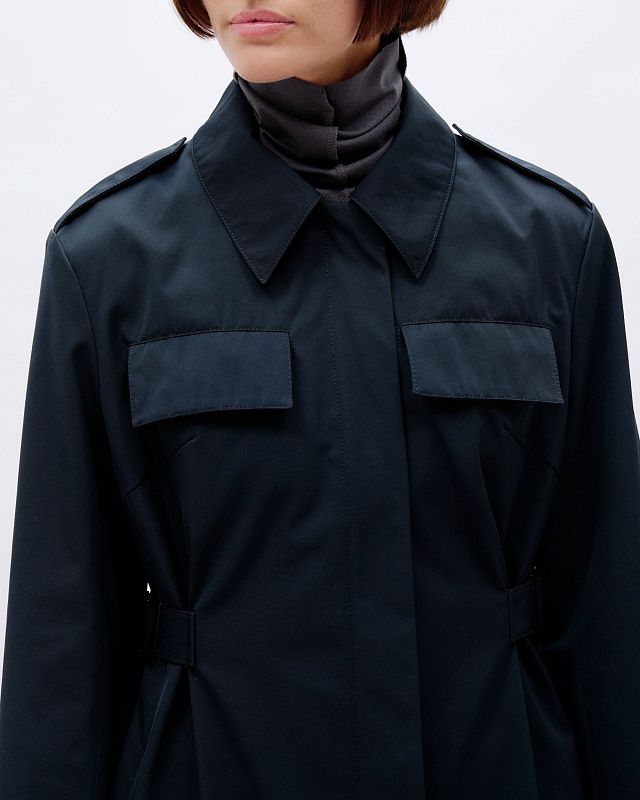

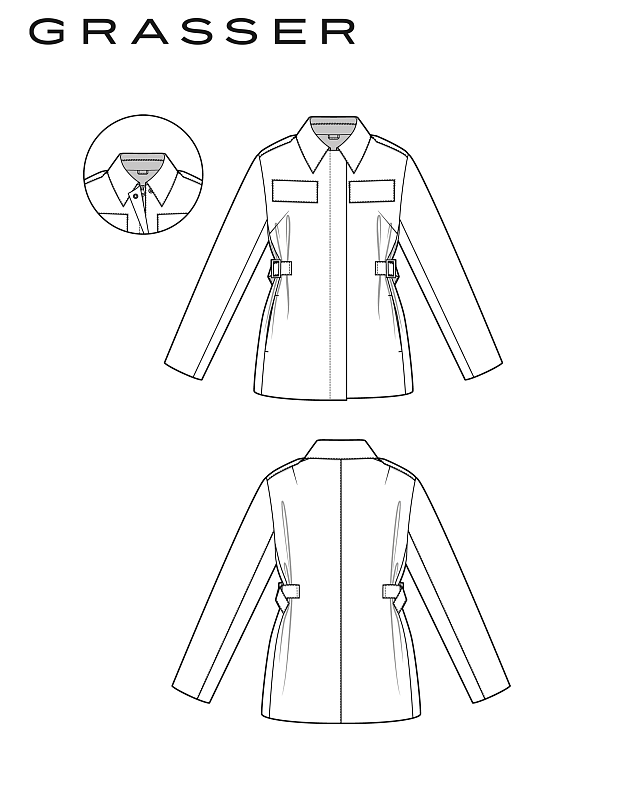

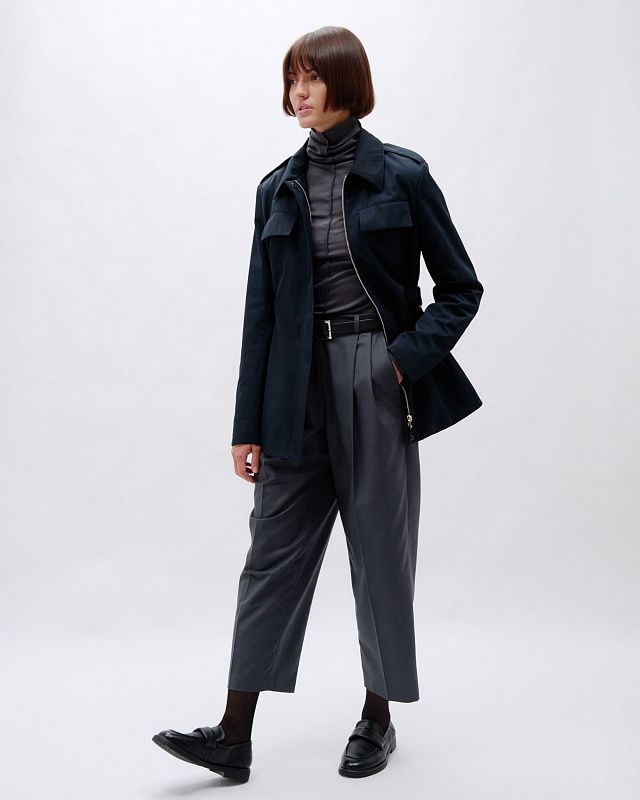

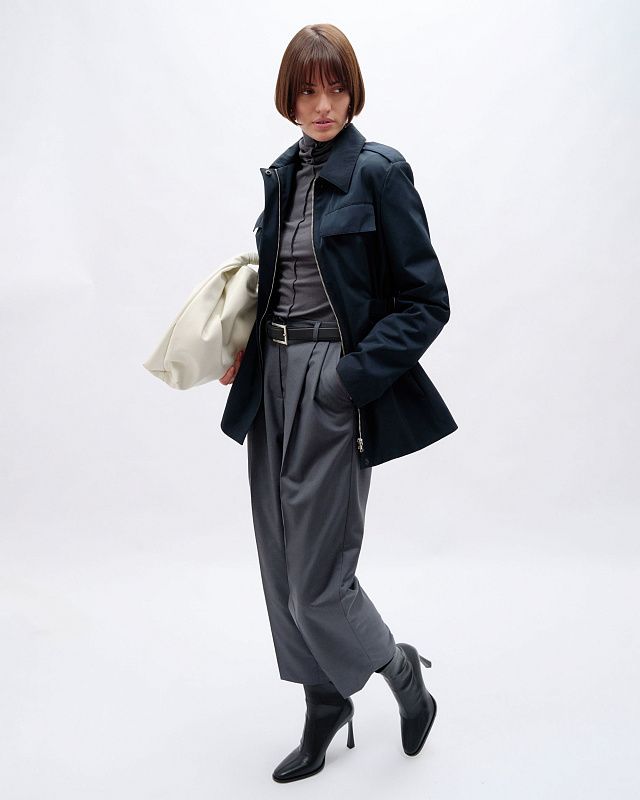

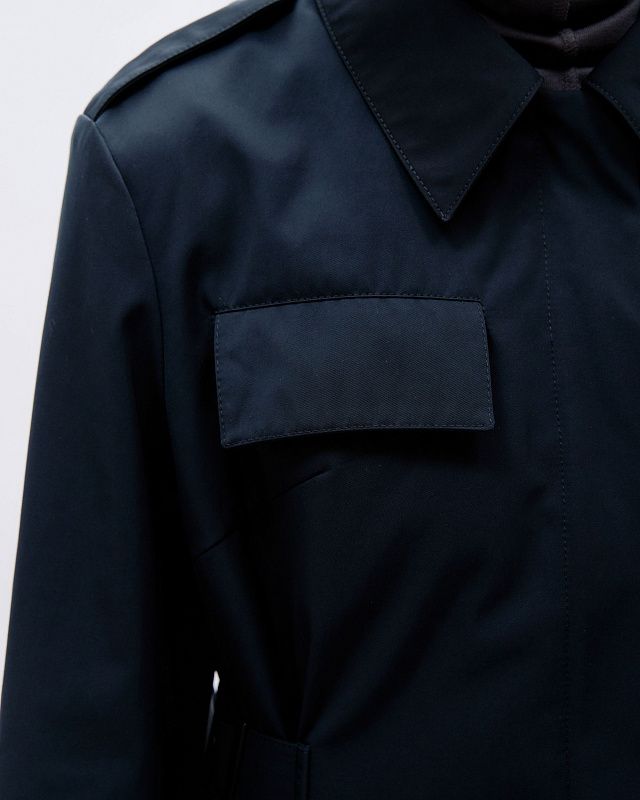

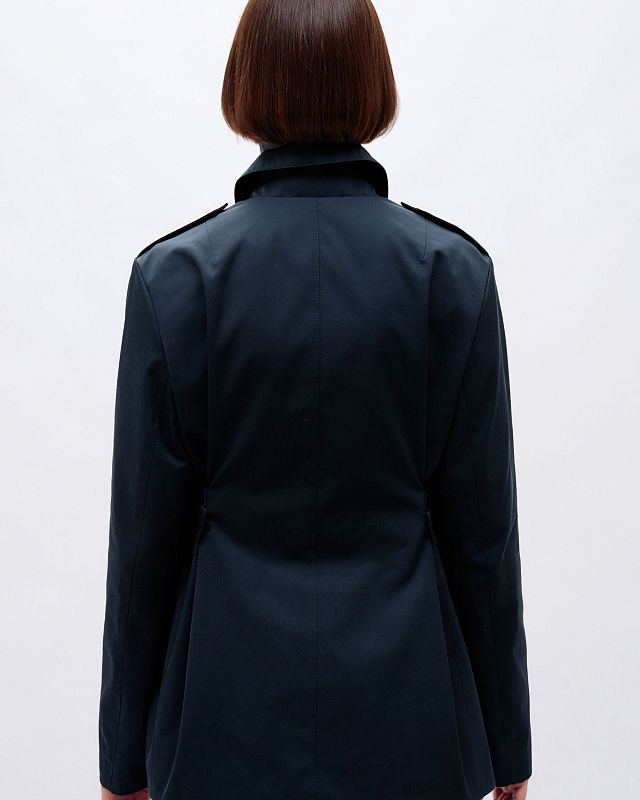

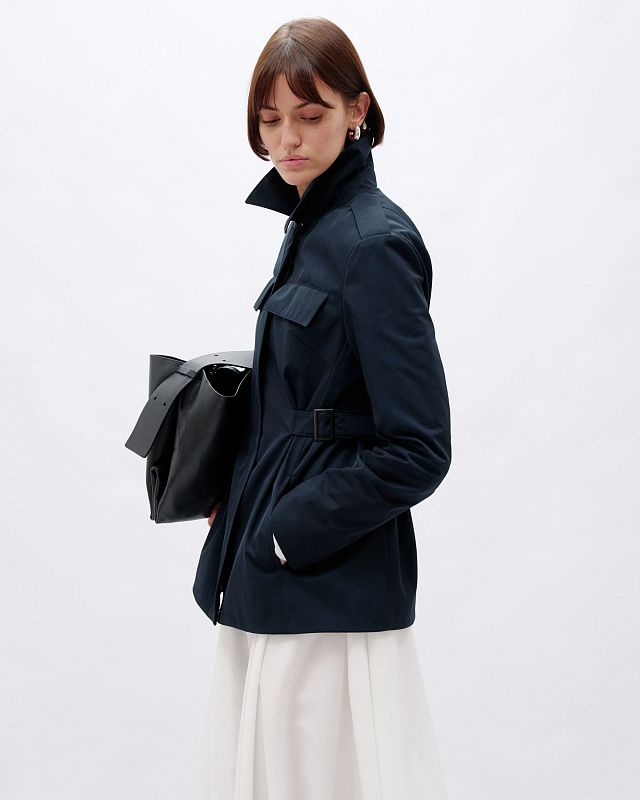

The jacket is loose-fitting, straight silhouette, with a length below the thigh line, lined. The central side closure has 2 snaps and a zipper. There is no side seam, the side part is modeled. The front is with a breast dart from a princess seam and with welt chest pockets, with side ends stitched in and a flap. Pockets are located in the princess seams. The back is with a center seam and shoulder darts. To adjust the volume along the waistline, the garment is complemented with straps, with a buckle closure. Shoulder straps are located along the shoulder seams. The sleeves are stitched in, full-length, and with bottom and elbow seams. The round neck is finished with a stand-up collar with a cut-off stand.
Model is wearing a size 42. Model parameters: Bust-line: 86 cm, Waist-line: 62 cm, Hips: 89 cm, Height: 173 cm. -
Bust-line: 30,0 сm.
Hips-line: 29,2 cm.
Shoulders: 12,0 cm. -
Size 38 40 42 44 46 48 50 52 54 56 58 60 62 Finished back length along the center back seam, cm 64,1-68,1 64,2-72,2 64,3-72,3 64,4-72,4 64,5-72,5 64,6-72,6 64,7-72,7 64,8-72,8 64,9-72,9 65,0-73,0 65,1-73,1 67,2-73,2 67,7-73,7 Finished sleeve length, cm 56,7-60,4 57,0-64,4 57,2-64,6 57,5-64,9 57,7-65,1 58,0-65,4 58,2-65,6 58,5-65,9 58,7-66,1 58,8-66,2 58,9-66,3 60,9-66,4 61,0-66,5 -
Main fabric. For this model, we recommend using medium-density raincoat and jacket fabrics; raincoat, jacket fabrics with or without waterproof coating; raincoat, jacket fabrics with or without various types of impregnation. In terms of composition, these can be fabrics made of natural, synthetic or mixed fibers.
Lining material. As a lining, use fabrics that match the pliable properties and density of the upside fabric made of natural, synthetic or mixed fibers.
Interfacing materials. For better quality of sewing, we recommend to use the interfacing material. For example, you may use 33-39 g/m2 density 150 cm, width woven interfacing. The density of the interfacing material depends on the main fabric density. -
The amount of fabric in meters.
Size38 40 42 44 46 48 50 52 54 56 58 60 62 Main fabric, wide 140 cm 1,60-1,65 1,65-1,80 1,65-1,80 1,70-1,85 1,75-1,90 1,80-1,90 1,85-2,00 1,90-2,05 1,90-2,10 1,95-2,15 2,00-2,15 2,10-2,20 2,10-2,25 Lining fabric, wide 140 cm 1,25-1,30 1,25-1,40 1,30-1,45 1,30-1,45 1,30-1,45 1,30-1,50 1,35-1,50 1,35-1,50 1,40-1,55 1,40-1,55 1,40-1,60 1,50-1,65 1,50-1,65 Interfacing (density 33-39 g/m2; width 150 cm) 0,60
0,65 Fusible on grain tape 0,20
Attention! We give an exact fabric consumption for a tight layout scheme of the details, without the extra seam allowances for the fitting and rough cutting. All pattern details should be arranged on an opened fabric sheet strictly on grain in one direction, each pattern piece must be cut out only once.
Accessories
1. Open-end metal zipper #5, 55-70 cm long – 1 pc.
2. 40 mm inner diameter buckle - 2 pcs.
3. Snap button with the diameter of 12.5-15.0 mm - 2 pcs -
- Multipurpose sewing machine;
- An iron with or without steam;
- Regular presser foot;
- Hinged cording foot;
- Wooden iron;
- Ironing desk or console table;
- Hand needle for basting;
- Machine needles #85-95 for the main fabric;
- Machine needles #70 for the lining;
- Paper scissors;
- Scissors for textile cutting;
- Snaps pressing machine to install accessories press studs, depending on the diameter.
-
The pattern in your order will be in two print options:
1. For printing on A4/Letter. You need to print the pattern on a regular printer on A4/Letter sheets, then glue the sheets, cut the pattern and you can sew! A test square for checking the A4/Letter print scale is located on the first sheet of the pattern file.
2. For printing on a large format plotter. A test square for checking the plotter scale is located on the pattern sheet.
