Coat, pattern №967

Coat pattern. Straight, loose fit insulated and lined coat, mid-calf length. The zipper fastening is in the centre and it is finished with an underlap and two snap fasteners. The top front features zipped jetted pockets. The lower front has a welt jetted pocket with stitched ends and decorative topstitch of the pocket bag. The back is designed with the centre seam. A casing with a cord, adjusting the garment’s fit, is made on the waistline. The cord is pulled to the outside through eyelets.

The set-in, shirt sleeve is designed with a front and an elbow seams. The sleeve hem is finished with a cuff 9.0 cm high. A casing with a cord, adjusting the sleeve fit, is made on the elbow line. The cord is pulled to the outside through eyelets.

The neckline is round, finished with a standing collar (Version 1) or with a hood (Version 2).

The hood has a small volume, it is tailored with a cut-on standing collar and a neck cover. The front edge of the hood is drafted with a casing with a cord, adjusting the hood fitting. The cord is pulled to the outside through eyelets.

CONSTRUCTIVE EASE (EC)*:

Bust-line – 50,0 cm

Hips-line – 48,0 cm

Shoulders – 30,0 cm

Constructive ease consists of ease of package and ease of freedom.

Constructive ease is for a garment’s outer volume, ease of freedom is for a garment’s inner volume.

EC = EP + EF

We used two layers of insulation material for our garment, total density is 400 g/m2.

EASE OF PACKAGE (EP)*: 7.0 CM (May differ according to a material type).

Ease of freedom (EF):

Bust-line – 43,0 cm

Hips-line – 41,0 cm

Shoulders – 27,0 cm

Garment Length Measurements, cm

Finished back length along the center back, cm: size 38: 106,2-114,4, size 40: 106,2-116,7, size 42: 106,3-116,8, size 44: 106,3-116,8, size 46: 106,4-116,9, size 48: 106,4-116,9, size 50: 106,5-117,0, size 52: 106,5-117,0, size 54: 106,6-117,1, size 56: 106,6-117,1.

Finished sleeve length to cuff, cm: size 38: 45,5-49,3, size 40: 45,5-53,1, size 42: 45,5-53,1, size 44: 45,5-53,1, size 46: 45,5-53,1, size 48: 45,6-53,2, size 50: 45,6-53,2, size 52: 45,6-53,2, size 54: 45,6-53,2, size 56: 45,6-53,2.

Fabric suggestion:

Main fabric. We recommend for this garment nylon fabrics, waterproof fabrics with membrane coating, coated nylon, leatherette and faux suede. You can use quilted nylon fabric as well.

Finishing fabric. For the cuffs we recommend to use mid-weight and heavy-weight knit fabrics with stretch factor 0.80 - 0.85. For example, lounge rib knit, ribbing knit, rib trim and ready-to-use cuffs.

Lining fabric. We recommend to use synthetic lining fabric for shell fabrics with membrane coating, and synthetic, blended and natural lining fabric for nylon and other shell fabrics.

Insulation fabric. We recommend to use new-generation insulators with protective layer on either side, for example, polyester insulator 200 gsm 150 cm wide.

Duplicate materials. For better tailoring we recommend using a side booster with a non-adhesive density of 50 g/m2, a width of 90 cm.

Version 1. Garment with a high standing collar

Main fabric, wide 140 cm: size 38: 2,80-2,90, size 40: 2,85-3,05, size 42: 2,90-3,15, size 44: 2,95-3,20, size 46: 3,00-3,25, size 48: 3,05-3,30, size 50: 3,15-3,40, size 52: 3,25-3,50, size 54: 3,30-3,55, size 56: 3,35-3,55.

Insulation material (200 g/m2; width 150 cm): size 38: 3,65-3,85, size 40: 3,80-4,15, size 42: 3,85-4,15, size 44: 3,95-4,30, size 46: 4,05-4,40, size 48: 4,15-4,55, size 50: 4,25-4,65, size 52: 4,30-4,70, size 54: 4,35-4,75, size 56: 4,40-4,80.

Lining fabric, wide 140 cm: size 38: 2,00-2,10, sizes 40-42: 2,05-2,20, size 44: 2,05-2,25, size 46: 2,15-2,40, size 48: 2,20-2,45, size 50: 2,30-2,50, size 52-54: 2,35-2,50, size 56: 2,40-2,60.

Finishing fabric (kashkorse, ribana), wide 100 cm: sizes 38-56: 0,25.

Non-fusible facing straightener of 50 g/m2 and with the width of 90 cm: size 38: 1,20, size 40: 1,20-1,25, sizes 42-46: 1,20-1,30, sizes 48-56: 1,25-1,35.

Round cord with diameter of 5-7 mm: size 38: 3,05, size 40: 3,10, size 42: 3,20, size 44: 3,30, size 46: 3,35, size 48: 3,45, size 50: 3,50, size 52: 3,60, size 54: 3,65, size 56: 3,75,

Reps tape, wide 15-20 mm: size 38: 1,20, size 40: 1,20-1,25, size 42-48: 1,20-1,30, sizes 50-56: 1,25-1,35.

Attention! Given exact fabric consumption can be used only when pattern details are placed on a fabric sheet close to each other. All pattern details should be arranged on an opened fabric sheet strictly on grain in one direction, each pattern piece must be cut out only once.

Version 2. Garment with a hood

Main fabric, wide 140 cm: size 38: 3,15-3,25, size 40: 3,20-3,45, size 42: 3,25-3,50, size 44: 3,35-3,60, size 46: 3,40-3,65, size 48: 3,45-3,70, size 50: 3,50-3,80, size 52: 3,65-3,90, size 54: 3,70-3,95, size 56: 3,75-4,00.

Insulation material (200 g/m2; width 150 cm): size 38: 3,80-4,00, size 40: 3,90-4,25, size 42: 3,95-4,30, size 44: 4,00-4,35, size 46: 4,25-4,60, size 48: 4,30-4,75, size 50: 4,35-4,75, size 52: 4,40-4,85, size 54: 4,45-4,90, size 56: 4,55-4,95.

Lining fabric, wide 140 cm: size 38: 2,00-2,10, sizes 40-42: 2,05-2,20, size 44: 2,05-2,25, size 46: 2,15-2,40, size 48: 2,20-2,45, size 50: 2,30-2,50, size 52-54: 2,35-2,50, size 56: 2,40-2,60.

Finishing fabric (kashkorse, ribana), wide 100 cm: sizes 38-56: 0,25.

Non-fusible facing straightener of 50 g/m2 and with the width of 90 cm: size 38: 1,20, size 40: 1,20-1,25, sizes 42-46: 1,20-1,30, sizes 48-56: 1,25-1,35.

Round cord with diameter of 5-7 mm: size 38: 3,05, size 40: 3,10, size 42: 3,20, size 44: 3,30, size 46: 3,35, size 48: 3,45, size 50: 3,50, size 52: 3,60, size 54: 3,65, size 56: 3,75,

Reps tape, wide 15-20 mm: size 38: 1,20, size 40: 1,20-1,25, sizes 42-48: 1,20-1,30, sizes 50-56: 1,25-1,35.

Attention! Given exact fabric consumption can be used only when pattern details are placed on a fabric sheet close to each other. All pattern details should be arranged on an opened fabric sheet strictly on grain in one direction, each pattern piece must be cut out only once.

Garment accessories:

Pattern is given with seam allowances.

Detailed sewing instruction with step-by-step photos of sewing is attached to the pattern in the kit.

Degree of difficulty - "Advanced”.

The photos shows a vent sewed at the GRASSER  for pattern №967.

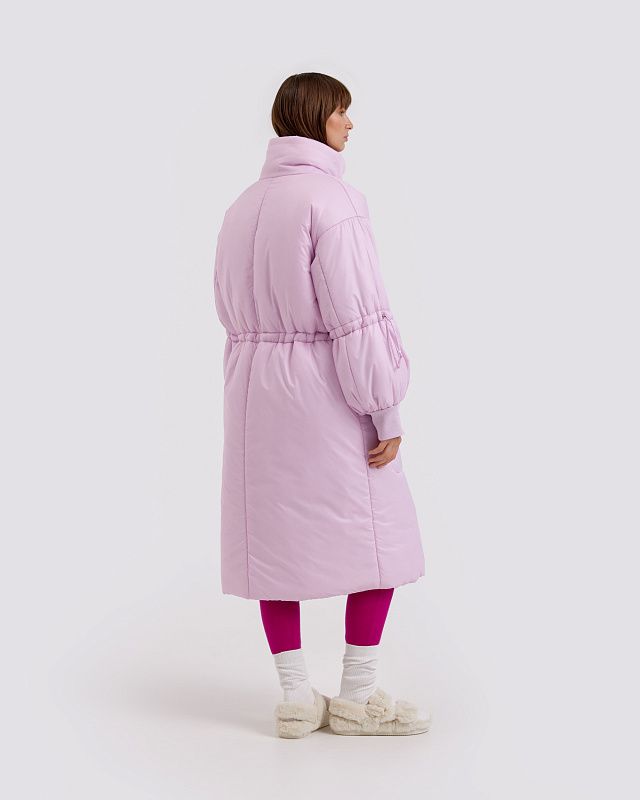

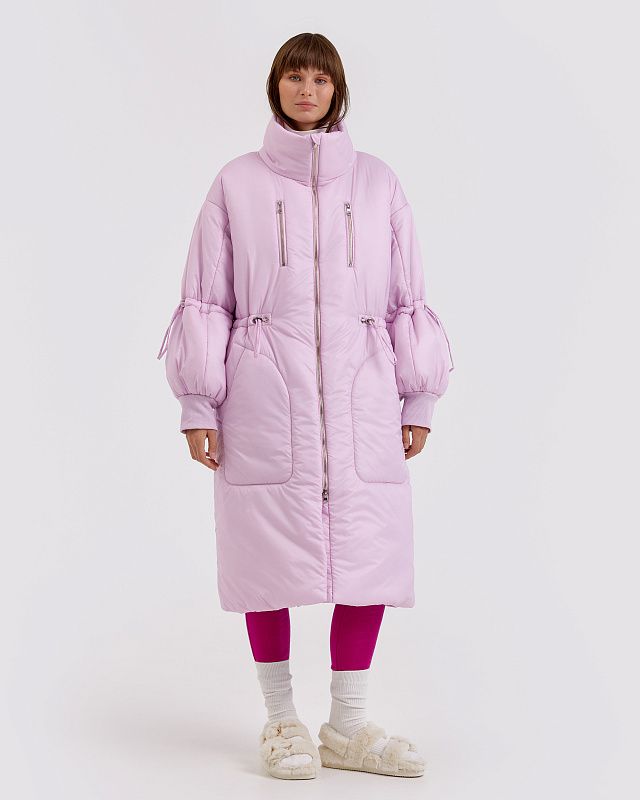

Model is wearing a size 42, height 170-176. Model parameters: Bust-line: 92 cm, waist-line: 64 cm, Hips: 97 cm, Height: 179 cm.

The images also shows: leggings on pattern №890.

The pattern in your order will be in two print options:

1. For printing on A4/Letter. You need to print the pattern on a regular printer on A4/Letter sheets, then glue the sheets, cut the pattern and you can sew!

A test square for checking the A4/Letter print scale is located on the first sheet of the pattern file.

2. For printing on a large format plotter.

A test square for checking the plotter scale is located on the pattern sheet.
