Backpack, pattern №1000

Sizes:

  • size 1
  • size 2
  • -

Size:

  • 1
  • 2
$10

After payment, links for downloads of patterns are sent to your e-mail. For registered users download links are also available in personal account in the section "My Orders".

Info

Comments

Questions

Backpack pattern. A unisex lined backpack made of fabric with a zipper closure on the top. The front features embellishment straps which continue as bag handles. A pair of magnetic clasps is installed in the upper part to secure the corners of the backpack. The back of the backpack features a handle, adjustable straps and a vertical jetted pocket with a zipper closure. The front piece of the lining has a patch pocket which can be used for keeping your mobile phone, miscellaneous small items, as well as the pocket for a card. The back piece of the lining has a horizontal jetted pocket with a zipper closure as well as a folder pocket closing with a velcro strap. The bottom and the straps are sewn with reinforcing material. The backpack is designed in two sizes.


Garment Length Measurementscm

Size

     Size 1

    Size 2

Garment height

44.5

32.0

Garment width

47.5

33.0

Backpack depth

12.5

9.5




Attention!  Details of patterns for textile and leather backpacks are located in different files to save printing. A textile backpack pattern will be in your order in files called "Top".

Leather backpack pattern - in files called "Additional 1".

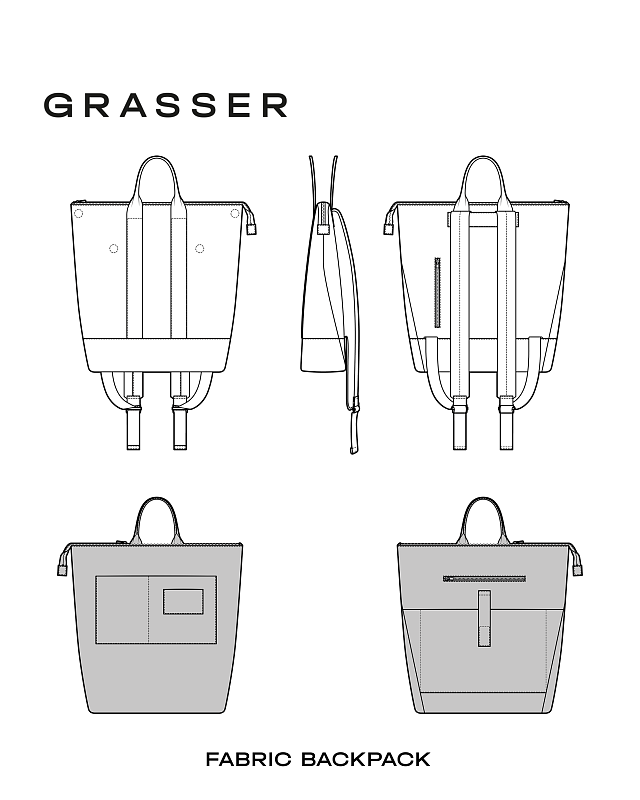

Fabric suggestion for fabric backpack

Main fabric. We recommend to use for this item durable materials, which are easy to clean, fabrics of different weights. Opt for materials with waterproof qualities with various coatings and waterproof surfaces. For example, trench cotton, oxford canvas, corduroy, denim, faux leather and faux suede and other materials.

We do not recommend knitted fabrics, fabrics susceptible to seam slippage.

Lining material. As a lining use the fabrics with density and plasticity suitable for the shell fabric, made out of natural, synthetic or blended fibre.

Reinforcing material. We have used adhesive ISOLON foam 3-5 mm thick to thicken the bottom and the straps.

For the folder pocket we used sew-on interfacing 64 gsm 90 cm wide.

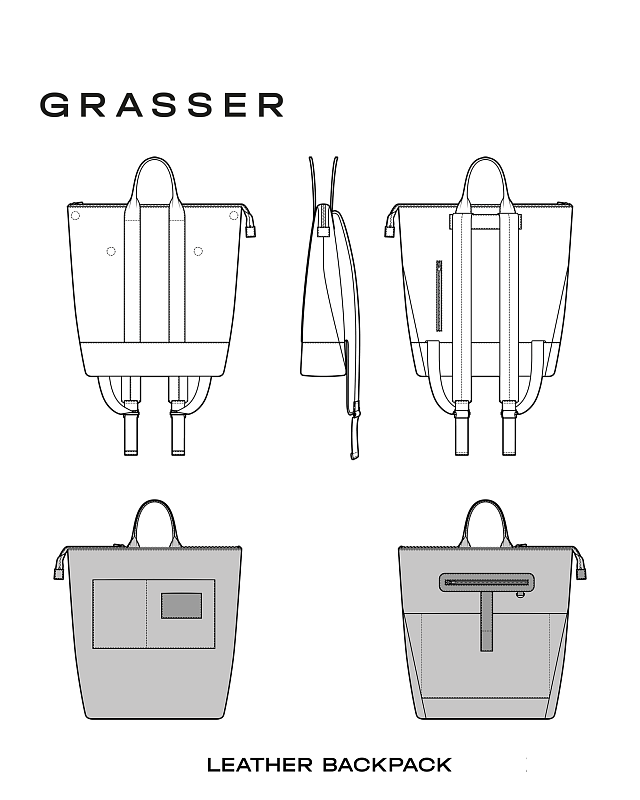

Fabric suggestion for leather backpack

Main fabric. We recommend natural leather or suede for this item.

Natural bovine leather 1.2 - 1.5 mm thick.

APPROXIMATE LEATHER REQUIREMENT IS 1.0 - 1.5 SC M

PURCHASE THE LEATHER ONLY WITH THE PREPARED PAPER PATTERN, EACH SKIN HAS INDIVIDUAL CHARACTERISTICS, DEFECTS, THICKNESS AND SHADE.

Lining material. As a lining use the fabrics with density and plasticity suitable for the shell fabric, made out of natural, synthetic or blended fibre.

Reinforcing material. We have used adhesive ISOLON foam 3-5 mm thick to thicken the bottom and the straps.

For the folder pocket we used sew-on interfacing 64 gsm 90 cm wide.


Amount of Fabrics for fabric backpack (in metres):

Size

    Size 1

    Size 2

Main fabric, wide 140 cm

0,70

0,60

Lining fabric, wide 140 cm

0,95

0,65

Reinforcing material, wide 100 сm

0,15

0,10

Non-fusible facing straightener (density 64 g/m2;

width 90 cm)

0,25

0,20

Textile belting 4.0 cm wide

1,65

1,35

Textile belting 3.0 cm wide

1,30

1,25


Attention! Given exact fabric consumption can be used only when pattern details are placed on a fabric sheet close to each other. All pattern details should be arranged on an opened fabric sheet strictly on grain in one direction, each pattern piece must be cut out only once.

Garment accessories for fabric backpack:
1. Continuous zipper #5 - 1.0 m or standard zippers of suitable lengths:
(For zipper closure on the top) zipper closed end #5, 1 pc.
  • 50.0 cm long (size 1)
  • 40.0 cm long (size 2)
(For outer pocket) zipper closed end #5, 1 pc.
  • 18.0 cm long (size 1)
  • 16.0 cm long (size 2)
(For inner pocket) zipper closed end #5, 1 pc.
  • 20.0 cm long (size 1)
  • 18.0 cm long (size 2)
2. Auto-lock metal slider (for continuous zippers) - 3 pcs.
3. Metal zipper bottom stop - 3 pcs. (if it is required to shorten the zipper).
4. Hook and loop tape (Velcro tape) 2.5 - 5.0 cm wide (for strap of the pocket).
5. Strap adjuster 3.0 cm wide (to fit the strap width) - 2 pcs.
6.Magnetic clasps, diameter 22 mm - (2 pairs) 4 pcs. (only in the size 1).

Amount of Fabrics for leather backpack (in metres):

Size

Size 1

Size 2

Main fabric

To estimate how much leather (suede) you need

 we recommend taking the pattern to your leather

hide store.

Lining fabric, wide 140 cm

0,95

0,7

Reinforcing material, wide 100 сm

0,15

0,10

Non-fusible facing straightener (density 64 g/m2;

width 90 cm)

0,25

0,20

Textile belting 3.0 cm wide

1,05

1,05

Attention! Given exact fabric consumption can be used only when pattern details are placed on a fabric sheet close to each other. All pattern details should be arranged on an opened fabric sheet strictly on grain in one direction, each pattern piece must be cut out only once.

Garment accessories for leather backpack:

1. Continuous zipper #5 - 1.0 m or standard zippers of suitable lengths:
Closed end zipper #5 (for the backpack opening) - 1 pc:
  • 50.0 cm long (for size 1)
  • 40.0 cm long (for size 2)
Closed end zipper #5 (for the outer pocket opening) - 1 pc:
  • 18.0 cm long (for size 1)
  • 16.0 cm long (for size 2)
Closed end zipper #5 (for the inner pocket opening) - 1 pc:
  • 20.0 cm long (for size 1)
  • 18.0 cm long (for size 2)
2. Auto-lock metal slider (for continuous zippers) - 3 pcs.
3. Metal zipper bottom stop - 3 pcs. (if it is required to shorten the zipper).
4. Hook and loop (velcro) tape 2.5 cm wide - 5.0 cm (for the pocket strap).
5. Strap adjuster for belting 3.0 cm wide (to suit the chosen width of the belting) - 2 pcs.
6. Magnetic clasps with diameter of 22 mm (2 pairs) 4 pieces (for size 1 only).
7. Metal zipper end tab for the backpack opening - 1 pc. (can be replaced with belting tape).
8. 12mm half-ring - 1 pc. (for key holder ring).

Pattern is given with seam allowances.

Detailed sewing instruction with step-by-step photos of sewing is attached to the pattern in the kit.

Degree of difficulty - "Advanced”.


The photos shows a backpack (Size 1) sewed at the GRASSER for pattern №1000.


The images also shows: trousers on pattern №998, coat on pattern №997, turtleneck sweater on pattern №913 blouse on pattern №859



Fabric backpack. For sewing you will need the following equipment:

1. Multipurpose sewing machine;
2. An iron with or without steam;
3. Regular presser foot;
4. Hinged cording foot;
5. Wooden iron;
6. Ironing desk or console table;
7. Hand needle for basting;
8. Machine needles №85-90 for the main fabric;
9. Machine needles №70-75 for the lining;
10. Paper scissors;
11. Scissors for textile cutting.
Leather backpack. For sewing you will need the following equipment:
1. Domestic sewing machine;
2. Iron with or without steam ;
3. Standard presser foot;
4. Teflon or roller walking presser foot for leather;
5. Zipper presser foot;
6. Ironing table or ironing board;
7. Tailor’s clapper or wooden presser;
8. Hand needle for basting;
9. Sewing machine needles #100 for leather;
10. Sewing machine needles #70-75 for lining fabric;
11. Paper scissors;
12. Tailor scissors;
13. Self-healing cutting mat;
14. Builder or paper knife with replaceable blades;
15. Steel ruler 40-50 cm long;
16. Erasable marking pen for leather;
17. Any hammer;
18. Double-sided leather adhesive tape;
19. Glue for rubber.

The pattern in your order will be in two print options:

1. For printing on A4/Letter. You need to print the pattern on a regular printer on A4/Letter sheets, then glue the sheets, cut the pattern and you can sew!

A test square for checking the A4/Letter print scale is located on the first sheet of the pattern file.

2. For printing on a large format plotter.

A test square for checking the plotter scale is located on the pattern sheet.
